Product Details

Description



Features:

`2.97V to 5.5V operation with 5V Tolerant Inputs
`8-bit Intel or Motorola Data Bus Interface
`Single Open Drain Interrupt output for all 4 channels
`Global Interrupt Source Registers for all channels
`5G (Fifth Generation) "Flat" Register Set
`Each UART is Independently Controlled with:
`16C550 Compatible Registers
`64-byte Transmit and Receive FIFOs
`Transmit and Receive FIFO Level Counters
`Programmable TX and RX FIFO Trigger Levels
`Automatic RTS/CTS or DTR/DSR Flow Control
`Selectable RTS Flow Control Hysteresis
`Automatic Xon/Xoff Software Flow Control
`Automatic RS485 Half-duplex Control Output with 16 Selectable Turn-around Delay
`Infrared (IrDA 1.1) Data Encoder/Decoder
`Programmable Data Rate with Prescaler
`Up to 3.12 (16x) and 6.25 (8x) Mbps Data Rate
` A General Purpose 16-bit Timer/Counter
` Sleep Mode with Automatic Wake-up Indicator
` 64-pin TQFP Package (10x10x1.4 mm)





Application

· Remote Access Servers
· Ethernet Network to Serial Ports
· Network Management
· Factory Automation and Process Control
· Point-of-Sale Systems
· Multi-port RS-232/RS-422/RS-485 Cards





Pinout

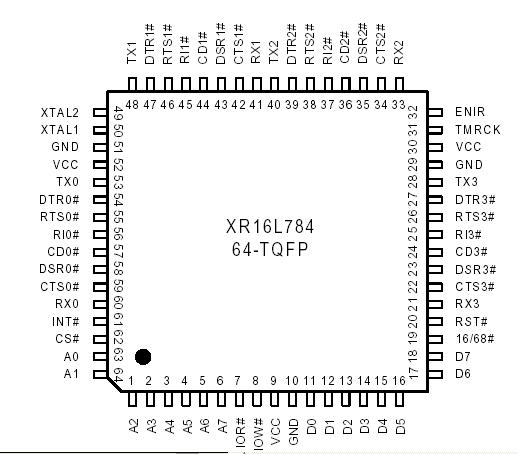

  Connection Diagram




Specifications

Specifications
CH 4
CPUInterface Intel or Motorola
Data Rate@5/3.3/2.5V 6.2/4.0/na @8X
Tx/RxFIFO(Bytes) 64/64
Tx/RxFIFOCtrs Yes
Tx/RxFIFOINT Trig Program/ Program
AutoRTS/CTS Yes
IrDaSup Yes
5VTolInputs Yes
Sup V 2.97-5.5
Pkgs LQFP-64


Specifications
CH 4
CPUInterface Intel or Motorola
Data Rate@5/3.3/2.5V 6.2/4.0/na @8X
Tx/RxFIFO(Bytes) 64/64
Tx/RxFIFOCtrs Yes
Tx/RxFIFOINT Trig Program/ Program
AutoRTS/CTS Yes
IrDaSup Yes
5VTolInputs Yes
Sup V 2.97-5.5
Pkgs LQFP-64


Power Supply Range 7 Volts
Voltage at Any Pin -0.5 to 7V
Operating Temperature -40o to +85
Storage Temperature -65o to +150
Package Dissipation 500 mW
Thermal Resistance (10x10x1.4mm 64-TQFP) q-ja =70, q-jc =14 /W





Description

Description

The XR16L7841 is a four-channel Universal Asynchronous Receiver and Transmitter (UART). The device is designed for high bandwidth requirements in communication systems. The XR16L784 (784) integrates the functions of four enhanced 16550 UARTs, a general purpose 16-bit timer/counter and an on-chip oscillator. The device configuration registers include a set of four consecutive interrupt source registers that provides interrupt-status for all four UARTs, timer/counter, and a sleep wake up indicator.

Each UART channel has its own 16550 UART-compatible configuration register set for individual channel control, status, and data transfer. Additionally, each UART channel has 64-byte transmit and receive FIFOs, automatic RTS/CTS or DTR/DSR hardware flow control with hysteresis control, and automatic Xon/Xoff and special character software flow control. The XR16L784 also has programmable transmit and receive FIFO trigger levels, FIFO level counters, infrared encoder and decoder (IrDA ver 1.0), and a programmable baud rate generator with a prescaler of divide by one or four, and data rate up to 6.25 Mbps with 8x sampling clock rate.

NOTE: 1 Covered by U.S. Patents #5,649,122 and #5,832,205

For UART technical support or to obtain an IBIS model for this product, please email Exar's UART Technical Support group.
