XR16M2650

Features: •1.62 to 3.63 Volt Operation•Pin-to-pin and software compatible to ST16C2550 in the 48-TQFP package•Pin-to-pin and software compatible to XR16L2550, XR16V2550 and XR16V2650•Two independent UART channels-Register set is 16550 compatible-Data rate of up to 16 Mbps a...

product image

XR16M2650 Picture
See larger image
SeekIC No. : 004549179 Detail

XR16M2650: Features: •1.62 to 3.63 Volt Operation•Pin-to-pin and software compatible to ST16C2550 in the 48-TQFP package•Pin-to-pin and software compatible to XR16L2550, XR16V2550 and XR16V26...

XR16M2650 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
XR16M2650
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•1.62 to 3.63 Volt Operation
•Pin-to-pin and software compatible to ST16C2550 in the 48-TQFP package
•Pin-to-pin and software compatible to XR16L2550, XR16V2550 and XR16V2650
•Two independent UART channels
-Register set is 16550 compatible
-Data rate of up to 16 Mbps at 3.3 V
-Data rate of up to 12.5 Mbps at 2.5 V
-Data rate of up to 8 Mbps at 1.8V
-Fractional Baud Rate Generator
-Transmit and Receive FIFOs of 32 bytes
-Selectable TX and RX FIFO Trigger Levels
-Automatic Hardware (RTS/CTS) Flow Control
-Automatic Software (Xon/Xoff) Flow Control
-Wireless Infrared (IrDA 1.0) Encoder/Decoder
-Automatic sleep mode
-Full modem interface
•Device Identification and Revision
•Crystal oscillator (up to 24MHz) or external clock (up to 64MHz) input
•48-TQFP and 32-QFN packages




Application

•Portable Appliances
•Telecommunication Network Routers
•Ethernet Network Routers
•Cellular Data Devices
•Factory Automation and Process Controls




Pinout

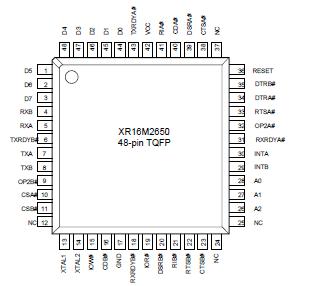

Connection Diagram




Specifications

Specifications
CH 2
CPUInterface Intel
Data Rate@5/3.3/2.5V na/16/12.5
Tx/RxFIFO(Bytes) 32/32
Tx/RxFIFOCtrs No
Tx/RxFIFOINT Trig 4 Levels/ 4 Levels
AutoRTS/CTS Yes
IrDaSup Yes
5VTolInputs No
Sup V 1.62-3.63
Pkgs TQFP-48, QFN-32


Power Supply Range .......................4 Volts
Voltage at Any Pin .............GND-0.3V to 4V
Operating Temperature ......-40 to +85
Storage Temperature .....-65 to +150o
Package Dissipation ......................500 mW




Description

Description

The XR16M26501 (M2650) is a high performance dual universal asynchronous receiver and transmitter (UART) with 32 bytes TX and RX FIFOs. The device operates from 1.62 to 3.63 volts and is pin-to-pin and software compatible to the ST16C2550, XR16V2550 and XR16V2650. It supports Exar's enhanced features of selectable FIFO trigger level, automatic hardware (RTS/CTS) and software flow control, and a complete modem interface. Onboard registers provide the user with operational status and data error flags. An internal loopback capability allows system diagnostics. Independent programmable baud rate generators are provided in each channel to select data rates up to 16 Mbps at 3.3 Volt with 4X sampling clock. The M2650 is available in 48-pin TQFP and 32-pin QFN packages.

NOTE: 1Covered by U.S. Patent #5,649,122

For UART technical support or to obtain an IBIS model for this product, please email Exar's UART Technical Support group.
