Product Details

Description



Features:

•Meets true EIA/TIA-232-F Standards from a 3.0 V to 5.5V operation
•Up to 250 Kbps data transmission rate
•45us sleep mode exit (charge pump to full power)
•ESD protection for RS-232 I/O pins at
-+/-15kV - Human Body Model
-+/-15kV - IEC 1000-4-2, Air-Gap Discharge
-+/- 8kV - IEC 1000-4-2, Contact Discharge
•Software compatible with industry standard 16550 UART
•Intel/Motorola bus select
•Quarter-modem interface (TXD, RXD)
•Sleep modes to conserve battery power
•Wake-up interrupt upon exiting low power modes





Application

•Battery-Powered Equipment
•Handheld and Mobile Devices
•Handheld Terminals
•Industrial Peripheral Interfaces
•Point-of-Sale (POS) Systems

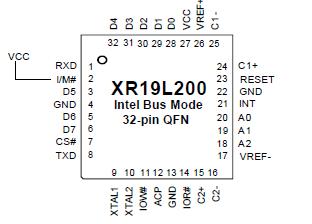

Pinout

  Connection Diagram




Specifications

Specifications
CH 1
CPUInterface Intel or Motorola
RS-232Drivers/Receivers 1/1
Data Rate@5/3.3/2.5V 250 kb/s
Tx/RxFIFO(Bytes) 16/16
Tx/RxFIFOCtrs No
Tx/RxFIFOINT Trig 4 Levels/ 4 Levels
AutoRTS/CTS No
IrDaSup No
5VTolInputs Yes
Sup V 3.0-5.5
Pkgs QFN-32


Specifications
CH 1
CPUInterface Intel or Motorola
RS-232Drivers/Receivers 1/1
Data Rate@5/3.3/2.5V 250 kb/s
Tx/RxFIFO(Bytes) 16/16
Tx/RxFIFOCtrs No
Tx/RxFIFOINT Trig 4 Levels/ 4 Levels
AutoRTS/CTS No
IrDaSup No
5VTolInputs Yes
Sup V 3.0-5.5
Pkgs QFN-32


Power Supply Range ......................7 Volts
Voltage at Any Pin ............GND-0.3V to 7V
Operating Temperature ......-40 to +85
Storage Temperature .......-65 to +150
Package Dissipation .....................500 mW





Description



The XR19L200 (L200) is a highly integrated device that combines a single channel Universal Asynchronous Receiver and Transmitter (UART) and an RS-232 transceiver. The L200 is designed to operate with a single 3.3V or 5V power supply. The L200 is fully compliant with EIA/TIA-232-F Standards from a +3.0V to +5.5V power supply. The device operates at 250 Kbps data rate with worst case 3K ohms load. Both RS-232 driver outputs and receiver inputs can operate in harsh electrical environments of +/-15V without damage and can survive multiple +/-15kV ESD on the RS-232 lines, while maintaining RS-232 output levels.

The L200 operates in three different modes: Awake, Partial Sleep, and Full Sleep. Each mode can be invoked via hardware or software.

For UART technical support or to obtain an IBIS model for this product, please email Exar's UART Technical Support group.



The XR19L200 (L200) is a highly integrated device that combines a single channel Universal Asynchronous Receiver and Transmitter (UART) and an RS-232 transceiver. The L200 is designed to operate with a single 3.3V or 5V power supply. The L200 is fully compliant with EIA/TIA-232-F Standards from a +3.0V to +5.5V power supply. The device operates at 250 Kbps data rate with worst case 3K ohms load. Both RS-232 driver outputs and receiver inputs can operate in harsh electrical environments of +/-15V without damage and can survive multiple +/-15kV ESD on the RS-232 lines, while maintaining RS-232 output levels.

The L200 operates in three different modes: Awake, Partial Sleep, and Full Sleep. Each mode can be invoked via hardware or software. In the Awake mode, all functions are active. In the Partial Sleep mode, the internal crystal oscillator or charge pump is turned off. In Full Sleep mode, the internal crystal oscillator and the charge pump is shut down. All the RS-232 receivers remain active in any of these four modes.
