XRD9827

Features: · 12-Bit Resolution, No Missing Codes· One-channel 6MSPS Pixel Rate· Triple-channel 2MSPS Pixel Rate· 6-Bit Programmable Gain Amplifier· 8-Bit Programmable Offset Adjustment· CIS or CCD Compatibility· Internal Clamp for CIS or CCD AC Coupled Configurations· 3.3V or 5V Operation & I/O...

product image

XRD9827 Picture
See larger image
SeekIC No. : 004549357 Detail

XRD9827: Features: · 12-Bit Resolution, No Missing Codes· One-channel 6MSPS Pixel Rate· Triple-channel 2MSPS Pixel Rate· 6-Bit Programmable Gain Amplifier· 8-Bit Programmable Offset Adjustment· CIS or CCD Co...

XRD9827 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
XRD9827
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 12-Bit Resolution, No Missing Codes
· One-channel 6MSPS Pixel Rate
· Triple-channel 2MSPS Pixel Rate
· 6-Bit Programmable Gain Amplifier
· 8-Bit Programmable Offset Adjustment
· CIS or CCD Compatibility
· Internal Clamp for CIS or CCD AC Coupled Configurations
· 3.3V or 5V Operation & I/O Compatibility
· Serial Load Control Registers
· Low Power CMOS: 200mW-typ
· Low Cost 20-Lead Packages
· USB Compliant




Application

· Color and Grayscale Flatbed Scanners
· Color and Grayscale Sheetfed Scanners
· Multifunction Peripherals
· Digital Color Copiers
· General Purpose CIS or CCD Imaging
· Low Cost Data Acquisition
· Simple and Direct Interface to Canon 600 DPI Sensors




Pinout

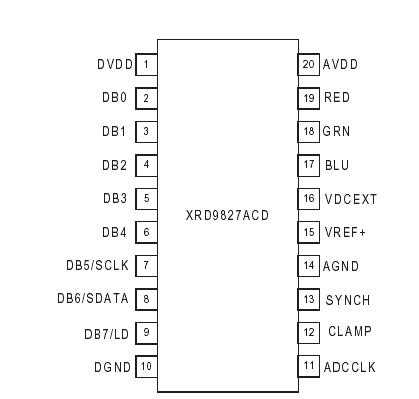

Connection Diagram




Specifications

Specifications
No. ofCH 3
CDS(CCD Input) Yes
S&H/T&H(CIS Input) Yes
PGA Res. 6-Bit
OffsetRange 8-Bit
A/DRes. 12-Bit
A/DSpeed 6-MSPS
Sup V 3V or 5V
Pwr (Typ) 200mW
Pkgs SOIC-20





Description



The XRD9827 is a 3-channel, 12-bit linear (A/D) processor for Contact Image Sensor (CIS) and Charged Coupled Device (CCD) systems. It combines the analog front end (AFE) with the analog-to-digital functions on a single chip.

It offers a low-cost, highly integrated solution for (CIS) scanners and copiers that have resolutions up to 600 DPI.

The XRD9827 also offers a Charge Coupled Device (CCD) mode. It is suitable for 3-channel CCD applications in pixel-by-pixel mode. An internal clamp sets the proper black level for CCD outputs.

Applications include sheet-fed and flat-bed scanners, multifunction products (combining copier, fax and scanner functions), digital copiers, bar code readers, and fingerprint scanners.

The XRD9827 has a mux, S&H, CDS, and 12-bit A/D.

In addition to 12-bit resolution and speeds up to 6 MSPS, the XRD9827 offers 3V and 5V operation. It is the lowest cost solution available today.
