XRT4500

Features: • Pin Programmable Multiprotocol Serial Interface• V.35, V.36, EIA-530 A, RS232 (V.28), V.10, V.11, X.21 and RS449 Communication Interface Standards• V.28, V.10, V.11 and V.35 Electrical Interfaces are 'CTR2' Compliant• Contains On-Chip Source and Load Termination...

product image

XRT4500 Picture
SeekIC No. : 004549408 Detail

XRT4500: Features: • Pin Programmable Multiprotocol Serial Interface• V.35, V.36, EIA-530 A, RS232 (V.28), V.10, V.11, X.21 and RS449 Communication Interface Standards• V.28, V.10, V.11 and...

floor Price/Ceiling Price

Part Number:
XRT4500
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/27

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Pin Programmable Multiprotocol Serial Interface
• V.35, V.36, EIA-530 A, RS232 (V.28), V.10, V.11, X.21 and RS449 Communication Interface Standards
• V.28, V.10, V.11 and V.35 Electrical Interfaces are 'CTR2' Compliant
• Contains On-Chip Source and Load Termination Resistors
• Contains Eight Receivers and Eight Transmitters with Switchable DTE and DCE Modes
• Glitch Filters on the Control Signals (Selectable)
• +5V Single Power Supply with internal DC-DC Converter
• Full Support of Loopbacks, Data & Clock Inversion,and Echoed Clock in DTE and DCE Modes
• Full Support of Most Popular Types of HDLC Controllers (Single, Double, and Triple Clocks supported)
• High-speed V.28 Driver: 256KHz
• Internal Oscillator for Standalone DTE Loopback Testing
• Control Signals Can Be Registered and Non-registered
• Control Signals Can Be Tri-stated for Bus-based Designs
• "Cable Safe" Operation Supported
• ESD Protection Over ± 1KV Range
• TTL Level Digital Inputs
• TTL/CMOS Digital Outputs



Application

• Data Service Units (DSU)
• Channel Service Units (CSU)
• Routers
• Bridges
• Access Equipment



Pinout

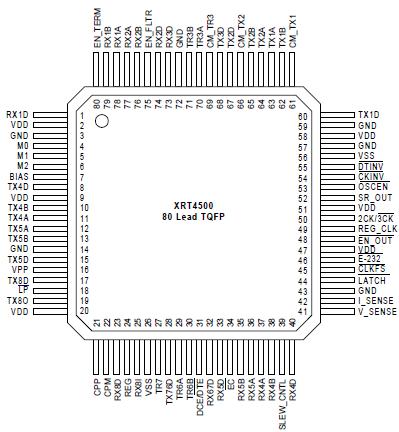

  Connection Diagram


Description

The XRT4500 is a fully integrated multiprotocol serial interface. It supports all of the popular serial communication interface standards such as ITU-T V.35, ITUT V.36, EIA530A, RS232 (ITU-T V.28), ITU-T X.21 and RS449. It can easily be interfaced with most common types of Serial Communications Controllers (SCCs). This device contains eight receivers and eight transmitters, in groups of six or seven. It is a complete solution containing all of the required source and load termination resistors in one 80-pin TQFP package. The XRT4500 operates at higher speeds (20MHz for V.35 and 256kbps for V.28).

The XRT4500 can be configured to operate in one of the seven interface standards in either DTE, or DCE modes of operation and power down mode. It fully supports echoed clock as well as clock and data inversion.Loopbacks are supported in DTE and DCE modes of operation. This feature eliminates the need for external circuitry for loopback implementation.

Control signals such as RI, RL, DCD, DTR, DSR are protected against glitches by internal filters. These filters can be turned off. The XRT4500 provides an internal oscillator (clock signal) which can be used to conduct standalone diagnostics of DTE equipment
