Product Details

Description

Features:

` On chip Clock and Data Recovery circuit for high input jitter tolerance
` Meets E3/DS3/STS-1 Jitter Tolerance Requirement
` Detects and Clears LOS as per G.775
` Receiver Monitor mode handles up to 20 dB flat loss with 6 dB cable attenuation
` On chip B3ZS/HDB3 encoder and decoder that can be either enabled or disabled
` On-chip clock synthesizer provides the appropriate rate clock from a single 12.288 MHz Clock
` Provides low jitter output clock
` Compliant with Bellcore GR-499, GR-253 and ANSI T1.102 Specification for transmit pulse
` Tri-state Transmit output capability for redundancy applications
` Each Transmitter can be turned on or off
` Transmitters provide Current Output Drive
` On chip advanced crystal-less Jitter Attenuator for each channel
` Jitter Attenuator can be selected in Receive or Transmit paths
` Meets ETSI TBR 24 Jitter Transfer Requirements
` Compliant with jitter transfer template outlined in ITUG.751, G.752, G.755 and GR-499-CORE,1995 standards
` 16 or 32 bits selectable FIFO size
` Jitter Attenuator can be disabled
` 5 wire Serial Microprocessor Interface for control and configuration
` Supports optional internal Transmit driver monitoring
` Hardware Mode for control and configuration
` Each channel supports Local, Remote and Digital Loop-backs
` Single 3.3 V ± 5% power supply
` 5 V Tolerant digital inputs
` Available in 128 pin LQFP Package
` - 40to 85 Industrial Temperature Range

Application

· E3/DS3 Access Equipment
· DSLAMs
· Digital Cross Connect Systems
· CSU/DSU Equipment
· Routers
· Fiber Optic Terminals

Pinout

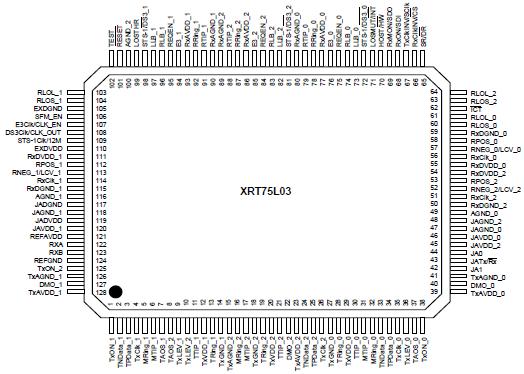

Connection Diagram

Specifications

Specifications
No. ofCH	3
DataRate(s)	DS3, E3, STS-1
Clk Rec	Yes
SH/LH	n/a
Temp.Range	Ind.
OpPwr Sup/Max Cur	3V ±5%
Pkgs	TQFP-128

SYMBOL	PARAMETER	MIN	MAX	UNITS	COMMENTS
V_DD	Supply Voltage	-0.5	6.0	V	Note 1
V_IN	Input Voltage at any Pin	-0.5	5.5	V	Note 1
I_IN	Input current at any pin		100	mA	Note 1
S_TEMP	Storage Temperature	-65	150		Note 1
A_TEMP	Ambient Operating Temperature	-40	85		linear airflow 0 ft./min
Theta JA	Thermal Resistance		23	/W	linear air flow 0ft/min (See Note 3 below)
M_LEVL	Exposure to Moisture	5		level	EIA/JEDEC JESD22-A112-A
ESD	ESD Rating	2000		V	Note 2

NOTES:
1. Exposure to or operating near the Min or Max values for extended period may cause permanent failure and impair
reliability of the device.
2. ESD testing method is per MIL-STD-883D,M-3015.7
3. With Linear Air flow of 200 ft/min, reduce Theta JA by 20%, Theta JC is unchanged.

Description

The XRT75L03 is a three-Channel fully integrated Line Interface Unit (LIU) and Jitter Attenuator for E3/DS3/STS-1 applications. It incorporates three independent Receivers, Transmitters and Jitter Attenuators in a single 128-Lead QFP package. Each channel of the XRT75L03 can be independently configured to operate in E3 (34.368 MHz), DS3 (44.736 MHz) or STS-1 (51.84 MHz) rates. Each transmitter can be turned off and tri-stated for redundancy support and power conservation.

The XRT75L03's differential receivers provide high noise interference margin and are able to receive the data over 1000 feet of cable, or with cable attenuation of up to 12 dB.

The XRT75L03 incorporates an advanced crystal-less jitter attenuator per channel that can be selected either in the transmit or receive path. The jitter attenuator performance meets the ETSI TBR-24 and Bellcore GR-499 specifications.

The XRT75L03 provides both Serial Microprocessor Interface as well as Hardware mode for programming and control. The XRT75L03 supports local,remote and digital loop-backs. The XRT75L03 also contains an on-board Pseudo Random Binary Sequence (PRBS) generator and detector with the ability to insert and detect single bit error.
