Features:

· 156 or 320 MHz Operating Range
· Low Output Jitter:
·0.0009 UIRMS typical @ 155.52 MHz, per Telcordia GR-253-CORE for OC-3.
· On Chip Crystal Oscillator Circuit
· Optimized for 15 to 40 MHz crystals
· Uses parallel fundamental mode
· Selectable 8x or 16x multiplier
· Selectable ÷1 or ÷2 LVDS output
· LVDS output meets TIA/EIA 644A Specification (2001)
· 3.3V Low power CMOS: <80 mW typical
· -40°C to +85°C operating temperature
· Extremely small 16-lead QFN package





Application

· Gigabit Ethernet
· SONET/SDH
· SPI-4 Phase 2
· 8x or 16x Clock Multiplier for
· Computer FIGURE 1. XRT8010 BLOCK DIAGRAM
· Telecommunications Sytems





Pinout

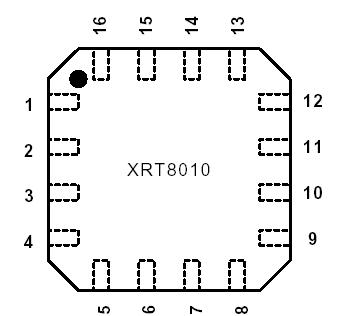

  Connection Diagram




Specifications

Supply voltage ........................-0.5 to 6.0 V
VIN .........................................-0.5 to 6.0 V
Storage Temperature....... -65 to + 150
Operating Temperature..... -40 to + 85
ESD ..........................................2,000 volts


Specifications
Mult Ratio 8, 16
Pwr Sup 3.3V
Pkgs QFN-16





Description

The XRT8010 is a monolithic analog phase locked loop that provides a high frequency LVDS clock output, using a low frequency crystal or reference clock. It is designed for SONET/SDH and other low jitter applications.The high performance of the IC provides a very low jitter LVDS clock output up to 320 MHz, while operating at 3.3 volts. The XRT8010 has a selectable 8x or 16x internal multiplier for an external crystal or signal source. The Output Enable pin provides a true disconnect for the LVDS output. The very compact (4 x 4 mm) low inductance package is ideal for high frequency operation.
