YD358

Features: `Internally frequency compensated for unity gain;`Large DC voltage gain:100dB;`Wide operating supply range (Vcc=3V~32V);`Input common-mode voltage includes ground;`Large output voltage swing: from 0V to Vcc-1.5V;`Power drain suitable for battery operation.PinoutSpecifications PARA...

product image

YD358 Picture
See larger image
SeekIC No. : 004549807 Detail

YD358: Features: `Internally frequency compensated for unity gain;`Large DC voltage gain:100dB;`Wide operating supply range (Vcc=3V~32V);`Input common-mode voltage includes ground;`Large output voltage swi...

YD358 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
YD358
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Internally frequency compensated for unity gain;
`Large DC voltage gain:100dB;
`Wide operating supply range (Vcc=3V~32V);
`Input common-mode voltage includes ground;
`Large output voltage swing: from 0V to Vcc-1.5V;
`Power drain suitable for battery operation.

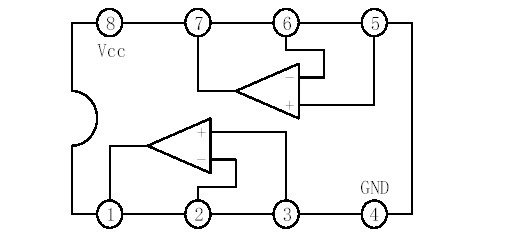

Pinout

Connection Diagram


Specifications

PARAMETER
SYMBOL
VALUE
UNIT
Supply Voltage
Vcc
32
V
Differential Input Voltage
VI (DIFF)
±32
V
Input Voltage
VI
0.3~32V
V
Power Dissipation(DIP8)
PD1
570
mW
Power Dissipation(SOP8)
PD2
260
mW
Operating Temperature
Topr
0~ +70
A
Storage Temperature
Tstg
-65 ~ +150



Description

The YD358 consists of dual independent, high Gain internally frequency compensated operational amplifiers which were designed specifically to operation from a single power supply over a wide voltage range.
