Product Details

Description



Features:

`Single or dual supply operation;
`Wide operating supply range; (VCC=2V~36V or ±1~±18V)
`Input common-mode voltage includes groud;
`Low supply current drain: ICC=0.8mA(Typical);
`Low input bias current Ibias=25nA(Typical);
`Output compatable with TTL, DTL, and CMOS logic system;
`Package Outline : DIP8, SOP8.


Pinout

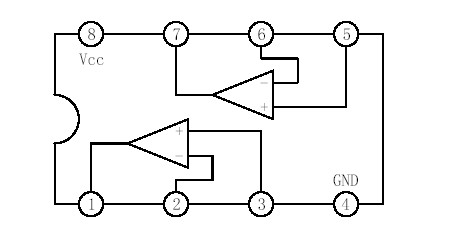

Connection Diagram


Specifications

characteristic
symbol
value
Unit
Supply Voltage
VCC
±18 or 36
V
Differential input voltage
VID
36
V
Input Voltage
VI
-0.3~36V
V
Power Dissipation
Pd
570
mW
Operating Temperature
Topr
0 to +70
Storage Temperature
Tstg
-55 to 150



Description

The YD393 consists of two independent voltage comparators designed specifically to operate from a single power supply over a wide voltage range
