YMF715E

Features: * Built-in OPL3 (FM-synthesizer)*Supports Sound Blaster Game compatibility* Supports Windows Sound System compatibility* Supports Plug & Play ISA 1.0a compatibility* Full Duplex operation* Built-in MPU401 Compatible MIDI I/O port* Built-in Joystick port* Built-in the 3D enhanced cont...

product image

YMF715E Picture
See larger image
SeekIC No. : 004549984 Detail

YMF715E: Features: * Built-in OPL3 (FM-synthesizer)*Supports Sound Blaster Game compatibility* Supports Windows Sound System compatibility* Supports Plug & Play ISA 1.0a compatibility* Full Duplex operat...

YMF715E Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
YMF715E
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Built-in OPL3 (FM-synthesizer)
* Supports Sound Blaster Game compatibility
* Supports Windows Sound System compatibility
* Supports Plug & Play ISA 1.0a compatibility
* Full Duplex operation
* Built-in MPU401 Compatible MIDI I/O port
* Built-in Joystick port
* Built-in the 3D enhanced controller including all the analog components
* Supports multi-purpose pin function
   (Support 16-bit address decode, DAC interface for OPL4-ML/ML2, Zoomed Video port, EEPROM
   interface, MODEM interface, IDE CD-ROM interface)
* Hardware and software master volume control
* Supports monaural input
* 24 mA TTL bus drive capability
* Supports Power Management(power down, power save, partial power down, and suspend/resume)
* +5V/ +3.3V power supply for digital, 5V power supply for analog.
* 100 pin SQFP package (YMF715E-S)


Pinout

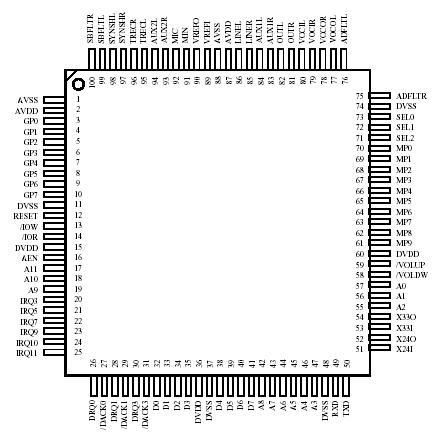

Connection Diagram


Specifications

Item Symbol Minimum Maximum Unit
Power Supply Voltage (Analog/Digital) VDD VSS-0.5 VSS+7.0 V
Input Voltage VIN VSS-0.5 VDD+0.5 V
Output Voltage VOUT VSS-0.3 VDD+0.3 V
Input Current IIN -20 20 mA
Storage Temperature TSTG -50 125 ..



Description

YMF715E-S (OPL3-SA3) is a single audio chip that integrates OPL3 and its DAC, 16bit Sigma-delta CODEC, MPU401 MIDI interface, joystick port, and a 3D enhanced controller including all the analog components which is suitable for multi-media application. This LSI is fully compliant with Plug and Play ISA 1.0a, and supports all the necessary features, i.e. 16bit address decode, more IRQs and DMAs in compliance with PC'96. This LSI also supports the expandability, i.e. Zoomed Video, Modem and CDROM interface in a Plug and Play manner, and power management (power down, power save, partial power down, and suspend/resume) that is indispensable with power-conscious application.
