YMU757B

Features: `YAMAHA's original FM sound generator function`Built-in sequencer`Capable of producing up to 4 different sounds simultaneously (4 independent timbres available).`Built-in output 400mW speaker amplifier`Built-in circuit for sound quality correcting equalizer`Built-in serial interface`2.68...

product image

YMU757B Picture
See larger image
SeekIC No. : 004549996 Detail

YMU757B: Features: `YAMAHA's original FM sound generator function`Built-in sequencer`Capable of producing up to 4 different sounds simultaneously (4 independent timbres available).`Built-in output 400mW spea...

YMU757B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
YMU757B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`YAMAHA's original FM sound generator function
`Built-in sequencer
`Capable of producing up to 4 different sounds simultaneously (4 independent timbres available).
`Built-in output 400mW speaker amplifier
`Built-in circuit for sound quality correcting equalizer
`Built-in serial interface
`2.688, 8.4, 12.6, 14.4, 19.2, 19.68, 19.8 and 27.82 MHz serial clock inputs support
`And support the mode which set to optional frequency from 2.685MHz to 27.853MHz at 55.93kHz intervals
`Analog output for ear phone
`Power down mode (Typ 1A or less)
`Power supply voltage (Digital and Analog): 3.0V±10 %
`20-pin QFN


Pinout

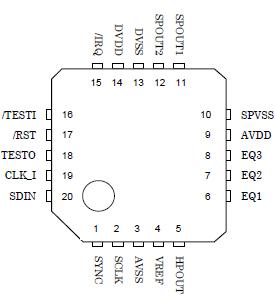

Connection Diagram


Specifications

Parameter Symbo Min. Max. Unit
Power supply voltage (analog) AVDD -0.3 4.2 V
Power supply voltage (digital) DVDD -0.3 4.2 V
Analog input voltage VINA -0.3 AVDD+0.3 V
Digital input voltage VIND -0.3 DVDD+0.3 V
Operating temperature TOP -20 85
Storage temperature TSTG -20 125

Note) DVSS = AVSS= SPVSS = 0V


Description

The YMU75B is a high quality melody LSI for cellular phone handsets, supporting the data format for various applications including ringing and holding melody sounds. The built-in Yamaha's original FM synthesizer can create various timbres, and its built-in sequencer can produce up to 4 different sounds with 4 different timbres  imultaneously  without placing a load to the controller.

The YMU75B serial port controller interface enables real time reproduction of the melody data via FIFO, without the limitation of the data capacity.

With a built-in amplifier to drive the dynamic type speaker, YMU75B is possible to connect the speaker directly.

This LSI YMU75B also has an analog-output terminal for the phone jack. In the stand-by mode, the power consumption can be reduced to 1 A or less while waiting.
