Product Details

Description

Features:

•Input voltage range: 18 to 36V DC
•Output: +15V, 200mA (output power: 3W)
•Thin-profile and lightweight design
•Insulation between input and output: 500V DC, 1min
•Built-in over-current protection circuit

Application

Best suited to onboard power supplies in FA, OA, and control equipment.

Pinout

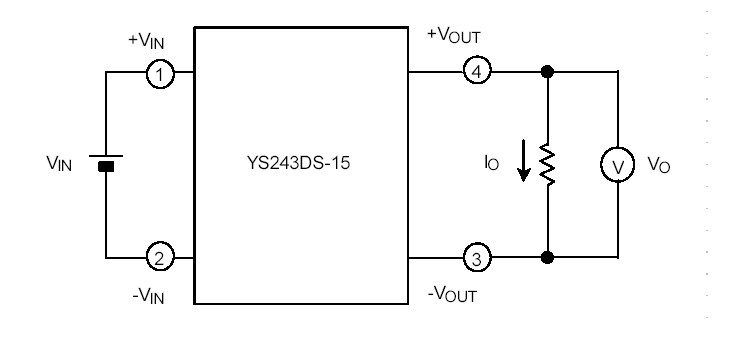

Connection Diagram

Specifications

Symbol	Parameter	Conditions	Ratings	Unit
V_IN	Input voltage	Between: pins 2 and 1	36	V
I_O	Output current	Between pins 4 and 3	200	mA
P_O	Output power	-	3	W
T_opr	Operating temperature	No condensation (*1)	-10 ~ +70
T_stg	Storage temperature	No condensation	-20 ~ +85
V_iso	Input-output isolation voltage	DC, 1min	500	V

(*1) Please refer to derating curve.

Description

The YS243DS-15 is a thin-profile and lightweight single-output DC-DC converter. Its output power is 3W and the input is insulated from the output. With an over-current protection circuit built-in, the YS243DS-15 is an optimum solution for onboard power supplies in FA, OA, and control equipment.
