YSS901

Features: ·Two channel virtual sound positioning by using the stereo dipole system.· Processes analog or digital signals at each of the two channels.· Four types of digital data format are available, including 48 fs Serial-DAC16, 18 and 20 bits, and 64 fs.· Six types of parameter coefficients are ...

product image

YSS901 Picture
See larger image
SeekIC No. : 004550047 Detail

YSS901: Features: ·Two channel virtual sound positioning by using the stereo dipole system.· Processes analog or digital signals at each of the two channels.· Four types of digital data format are available...

YSS901 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
YSS901
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Two channel virtual sound positioning by using the stereo dipole system.
· Processes analog or digital signals at each of the two channels.
· Four types of digital data format are available, including 48 fs Serial-DAC16, 18 and 20 bits, and 64 fs.
· Six types of parameter coefficients are built in the device. Additional parameter coefficients can be downloaded externally.
· The parameter control is made through the DC switches or synchronous three-wire serial system.
· Uses a clock of 2.822 MHz from the crystal. External clock can also be used.
· Has a built-in PLL circuit for generating clock for operation.
· Internal operating frequency of 512 fs.
· Allows fading in or out the output of the results of the convolution when switching the coefficient.
· Power supply voltage: 5 V
· Si-gate CMOS process.
· 64 QFP


Pinout

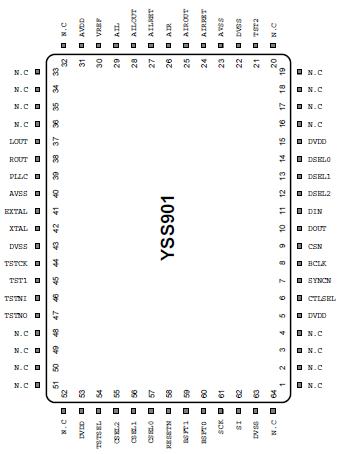

Connection Diagram


Specifications

Items Symbol Min. Max. Unit
Power supply Voltage VDD Vss-0.5 Vss+7.0 V
Input Voltage VI Vss-0.5 VDD1+0.5 V
Input Current II -20 +20 mA
Storage Temperature Tstg -50 125
