Z80181

· Z80180 Compatible MPU Core with 1 Channel of Z85C30 SCC, Z80 CTC, Two 8-Bit General-Purpose Parallel Ports, and Two Chip Select Signals.
· High Speed Operation (10 MHz)
· Low Power Consumption in Two Operating Modes:
    - (TBD) mA Typ. (Run Mode)
    - (TBD) mA Typ. (STOP Mode)
· Wide Operational Voltage Range (5V ±10%)
· TTL/CMOS Compatible
· Clock Generator
· One Channel of Z85C30 Serial Communication Controller (SCC)
· Z180 Compatible MPU Core Includes:
    - Enhanced Z80 CPU Core
    - Memory Management Unit (MMU) Enables Access to 1MB of Memory
    - Two Asynchronous Channels
    - Two DMA Channels
    - Two 16-Bit Timers
    - Clocked Serial I/O Port
· On-Board Z84C30 CTC
· Two 8-Bit General-Purpose Parallel Ports
· Memory Configurable RAM and ROM Chip Select Pins
· 100-Pin QFP Package

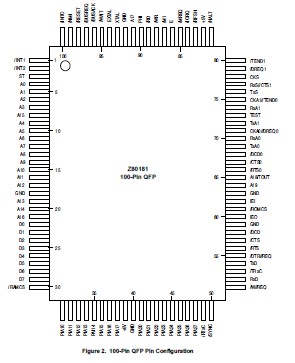

The Z80181 SAC™ Smart Access Controller (hereinafter, referred to as Z181 SAC) is a sophisticated 8-bit CMOS microprocessor that combines a Z8530/Z85C30  compatible MPU (Z181 MPU), one channel of Z85C30 Serial Communication Controller (SCC), a Z80 CTC, two 8-bit general-purpose parallel ports, and two chip select signals, into a single 100-pin Quad Flat Pack (QFP) package (Figures 1 and 2). Created using Zilog's patented Superintegration™ methodology of combining proprietary IC cores and cells, this high-end intelligent peripheral controller is well-suited for a broad range of intelligent communication control applications such as terminals, printers, modems, and slave communication processors for 8-, 16- and 32- bit MPU based systems.

Information on enhancement/cost reductions of existing hardware using Z80/Z180 with Z8530/Z85C30 applications is also included in this product specification.
