Product Details

Description



Features:

` Watch-Dog Timer and Power-On Reset
` Improved Low Power Stop Mode
` On-Chip Oscillator which Accepts a Crystal or External Clock Drive
` Improved Global Power-Down Mode
` Low Power Consumption - 200 mW (typical)
` Two Comparators
` RAM and ROM Protect
` On-Board Oscillator for 32.768 kHz Real-Time Clock
` Clock Speeds of 20.48 or 29.49 MHz
` 16-Bit Digital Signal Processor (DSP)
` 8K Word DSP Program ROM
` 512 Words On-Chip DSP RAM
` 8-Bit A/D Converter with up to 16 kHz Sample Rate
`10-Bit PWM D/A Converter
` Six Vectored, Prioritized Z8 Interrupts
` Three Vectored, Prioritized DSP Interrupts
` Two DSP Timers to Support Different A/D and D/A Sampling Rates
` IBM® PC-Based Development Tools
` Developer's Toolbox for T.A.M. Applications

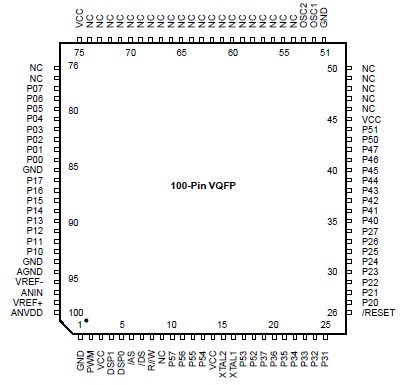

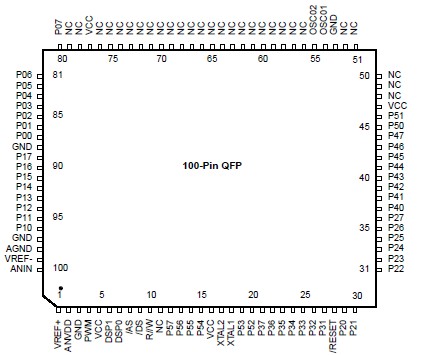

Pinout




Connection Diagram





Connection Diagram




Specifications

Symbol Description Min Max Units
VCC Supply Voltage (*) 0.3 +7.0 V
TSTG Storage Temp 65° +150° C
TA Oper Ambient Temp   † C

Notes:
*Voltage on all pins with respect to GND.
†See Ordering Information.


Description

The Z89175/176  Z89176 is a fully integrated, dual processor controller designed for voice processing applications. The I/O control processor is a Z8® with 24 KB of program memory, two 8-bit counter/timers, and up to 47 I/O pins. The DSP is a 16-bit processor with a 24-bit ALU and accumulator, 512x16 bits of RAM, single cycle instructions, and 8K words of program ROM. The chip also contains a half-flash 8-bit A/D converter with up to a 16 kHz sample rate and a 10-bit PWM D/A converter. The sampling rates for the converters are programmable. The precision of the 8-bit A/D can be extended by resampling the data at a lower rate in software. The Z8 and DSP processors are coupled by mailbox registers and an interrupt system. DSP or Z8 programs can be directed by events in each other's domain.

The Z89176 is the ROMless version of the Z89175. However, the on-chip DSP is not ROMless.
