Z90255 ROM

PinoutDescriptionIf Row, Second color and Character Z90255 ROM set are defined, an analog bar line can be displayed for volume control, signal levels, and tuning.The OSD Z90255 ROM can display four character sizes:• 1X (14 x 18 pixels)• 2X (28 x 36 pixels)• Double width (28 x 18 ...

product image

Z90255 ROM Picture
SeekIC No. : 004550480 Detail

Z90255 ROM: PinoutDescriptionIf Row, Second color and Character Z90255 ROM set are defined, an analog bar line can be displayed for volume control, signal levels, and tuning.The OSD Z90255 ROM can display four ...

floor Price/Ceiling Price

Part Number:
Z90255 ROM
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/28

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

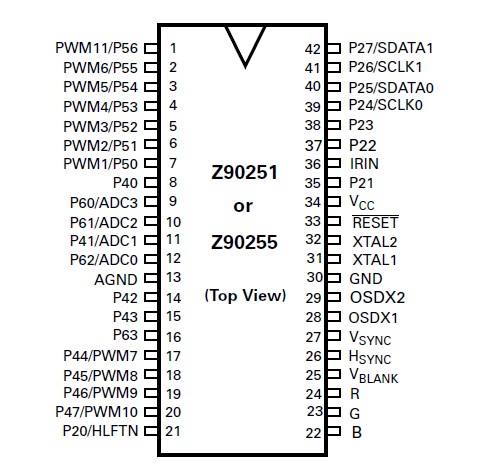

  Connection Diagram


Description

If Row, Second color and Character Z90255 ROM set are defined, an analog bar line can be displayed for volume control, signal levels, and tuning.

The OSD Z90255 ROM can display four character sizes:
• 1X (14 x 18 pixels)
• 2X (28 x 36 pixels)
• Double width (28 x 18 pixels)
• Double height (14 x36 pixels)

Inter-row spacing can be programmed within 0 to 15 Horizontal scan lines. Using multiple characters with zero inter-row spacing allows the creation of large psuedo icons.

A 14-bit Pulse Width Modulator (PWM) Z90255 ROM port provides necessary voltage resolution for a voltage synthesizer tuning system. Ten 6-bit PWM ports are used to control audio (base, treble, balance and volume) and video (contrast, brightness, color, tint and sharpness) signal levels.

There are 27 I/O pins grouped into four ports. These I/O pins can be configured through software to provide timing, status signals, serial and parallel input and output.

For real-time events, such as counting, timing and data communication, two on-chip counter/timers are implemented. The Z90255 is packaged in a 42-pin SDIP and provides an ideal, reliable solution for high-volume consumer television applications.
