Z9960

Features: • 2.5V or 3.3V operation• Output frequency up to 200 MHz• Supports PowerPC, and Pentium® processors• 21 clock outputs: drive up to 42 clock lines• LVPECL or LVCMOS/LVTTL clock input• Output-to-output skew < 150 ps• Split 2.5V/3.3V ...

product image

Z9960 Picture
See larger image
SeekIC No. : 004550493 Detail

Z9960: Features: • 2.5V or 3.3V operation• Output frequency up to 200 MHz• Supports PowerPC, and Pentium® processors• 21 clock outputs: drive up to 42 clock lines•...

Z9960 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
Z9960
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 2.5V or 3.3V operation
• Output frequency up to 200 MHz
• Supports PowerPC, and Pentium® processors
• 21 clock outputs: drive up to 42 clock lines
• LVPECL or LVCMOS/LVTTL clock input
• Output-to-output skew < 150 ps
• Split 2.5V/3.3V outputs
• Spread spectrum compatible
• Glitch-free output clocks transitioning
• Output disable control
• Pin-compatible with MPC9600
• Industrial temperature range: 40°C to +85°C
• 48-pin LQFP package


Pinout

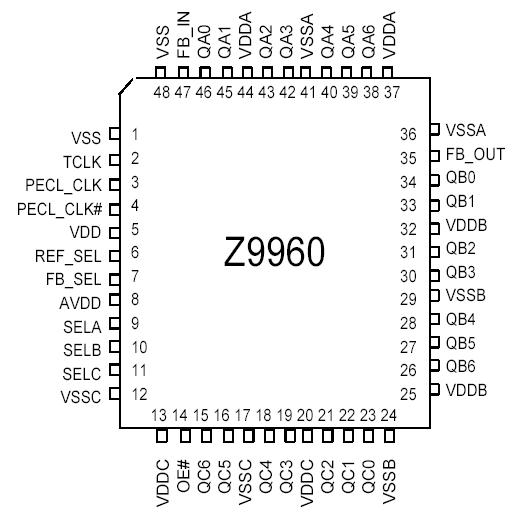

Connection Diagram


Specifications

Input Voltage Relative to VSS:.......................VSS 0.3V
Input Voltage Relative to VDD: ......................VDD + 0.3V
Storage Temperature: .....................-65°C to + 150°C
Operating Temperature:.....................-40°C to + 85°C
Maximum ESD Protection...........................................2kV
Maximum Power Supply: .........................................5.5V
Maximum Input Current:.................................... ± 20mA
Note:
2. The voltage on any input or I/O or pin cannot exceed the power pin during power-up. Power supply sequencing is NOT required.
