Features:

• Low power consumption5mW (typical)
• T = Temperature
S = Standard 0° to +70°C
E = Extended -40° to +105°C
A = Automotive -40° to +125°C
• Three standby modes:
STOP-1.4A (typical)
HALT-0.5mA (typical)
Low voltage reset
• Special architecture to automate both generation and reception of complex pulses or signals:
One programmable 8-bit counter/timer with two capture registers and two load registers
One programmable 16-bit counter/timer with one 16-bit capture register pair and one 16-bit load register pair
Programmable input glitch filter for pulse reception
• Six priority interrupts
Three external
Two assigned to counter/timers
One low-voltage detection interrupt
• Low voltage detection and high voltage detection flags
• Programmable Watch-Dog Timer/Power-On Reset (WDT/POR) circuits
• Two independent comparators with programmable interrupt polarity
• Programmable EPROM options
Port 0: 03 pull-up transistors
Port 0: 47 pull-up transistors
Port 1: 03 pull-up transistors
Port 1: 47 pull-up transistors
Port 2: 07 pull-up transistors
WDT enabled at POR


Pinout

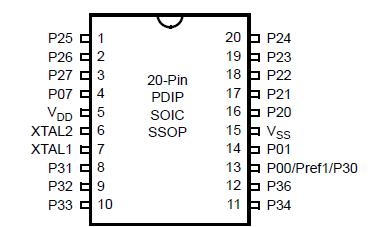

Connection Diagram


Specifications

Ambient temperature under bias.............................. 40 to +125
Storage temperature ................................................65 to +150
Voltage on any pin with respect to VSS1 ..................0.3 to +5.5 V
Voltage on VDD pin with respect to VSS ...................0.3 to +3.6 V
Maximum current on input and/or inactive output pin ...5 to+5 A
Maximum output current from active output pin ......25 to +25 mA
Maximum current into VDD or out of VSS ................................75 mA
1. This voltage applies to all pins except the following: VDD, P32, P33 and RESET.
