Features:

• Single-chip L band to zero IF quadrature down converter compliant with 1-45 Msps DVB-S2
• High dynamic range of -92 dBm to -10 dBm without RF attenuator or RSSI
• High total composite power handling
• Excellent immunity to adjacent channel nterference through programmable and autocalibrated channel filters
• Integrated power and forget LO oscillators
• 2 degree integrated phase jitter enables excellent performance for 8 PSK and 16 QAM applications
• Less than +/- 3° and +/-0.6 dB I/Q quadrature balance
• Integrated RF loop through for cascaded tuner applications
• Power saving mode


Application

• Advanced modulation DVB-S and DSS satellite receivers requiring upgrade for DVB-S2, 8 PSK / 16 QAM


Pinout

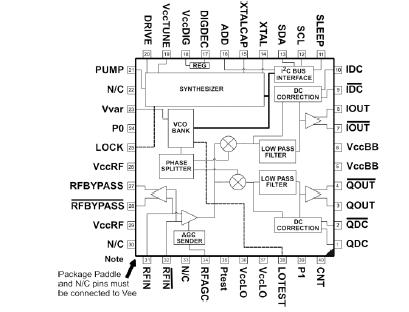

Connection Diagram


Description

ZL10038 is a fully integrated tuner for advanced modulation satellite receivers, operating over 950 - 2150 MHz and symbol rates in the range 1 - 45 MS/s. It contains a selectable RF bypass for connecting to a second receiver module.

ZL10038 simply requires a crystal reference and operates from a 5 V supply. It is designed as a 'simple to use' stand-alone tuner, requiring no training algorithms or user/demodulator intervention to optimize performance. The ZL10038 can be used with an advanced modulation demodulator to create a highly-integrated front-end solution, operating from 1-45 MS/s.
