Features:

• 3.45V Single Supply Operation
• Low Power Dissipation: 190mW typ
• Broadband: DC to 6GHz
• SSB Phase Noise (153dBc/Hz @ 10KHz)
• Pout 3dBm



Application

• DC to 6 GHz PLL applications
• HyperLan
• LMDS
• Instrumentation
• Satellite Communications
• Fibre Optic Communications; OC48, OC192
• Ultra Low Jitter Clock Systems



Pinout

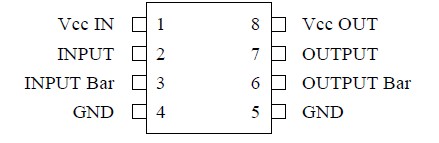

  Connection Diagram


Specifications

  Parameters Symbol Min Max Unit
1 Supply voltage Vcc -0.5 6 V
2 RFin     12 dBm
3 All I/O ports   -0.5 +0.5 V
4 ESD protection   2k   V Mil-std 883B / 3015 cat1
5 Storage temperature   -55 +150



Description

The ZL40800 and ZL40802 are Bipolar 3.45V supply, very low power prescalers for professional applications with a fixed modulus of 8 or 16. The ultra low close in (1KHz offset) SSB phase noise performance is ideal for narrow band communications systems or systems with ultra low jitter budgets such as next generation fibre optic communications. The ZL40800 is broadband from DC to 6GHz.

See Figure 1 and Application Note for RF Prescalers for more details.
