ZL40815DCE

Features: • Very High Operating Speed• Operation down to DC with Square Wave Input• Low Phase Noise (Typically better than -146dBc/Hz at 10kHz)• 5V Single Supply Operation• Low Power Dissipation: 510mW (Typ)• Surface Mount Plastic Package With Exposed Pad (See A...

product image

ZL40815DCE Picture
SeekIC No. : 004551009 Detail

ZL40815DCE: Features: • Very High Operating Speed• Operation down to DC with Square Wave Input• Low Phase Noise (Typically better than -146dBc/Hz at 10kHz)• 5V Single Supply Operation...

floor Price/Ceiling Price

Part Number:
ZL40815DCE
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/28

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Very High Operating Speed
• Operation down to DC with Square Wave Input
• Low Phase Noise (Typically better than
  -146dBc/Hz at 10kHz)
• 5V Single Supply Operation
• Low Power Dissipation: 510mW (Typ)
• Surface Mount Plastic Package With Exposed
  Pad (See Application Notes)



Application

• DC to 10 GHz PLL applications
• HyperLan
• LMDS
• Instrumentation
• Satellite Communications
• Fibre Optic Communications; OC48, OC192
• Ultra Low Jitter Clock SysteMS



Pinout

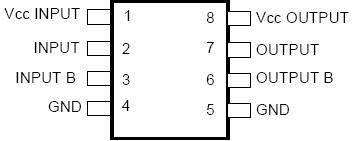

  Connection Diagram


Specifications

  Parameter Symbol Min Max Units
1 Supply Voltage Vcc   6.5V
2 Prescaler Input Voltage   2.5 (Vdd_IO+5%) Vp-p
3 ESD protection (Static Discharge)   2K   V
4 Storage temperature TST -65 +150 ºC
5 Maximum Junction Temp TJmax   +125 ºC
6 Thermal Characteristics Thja 58.6   °C/W
multi-layer PCB



Description

The ZL40815DCE is one of a range of 5V supply, very high speed, low power prescalers for professional applications with a fixed modulus of divide by 4. The dividing elements are static D type flip flops, and therefore, allow operation down to DC if the drive signal is a pulse waveform with fast risetimes. The output stage of ZL40815DCE has internal 50 ohm pull up giving a 1V p-p output. See application notes for more details
