Product Details

Description



Pinout

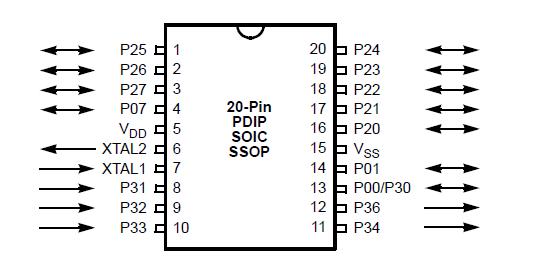

Connection Diagram


Specifications

Parameter Min. Max. Units
Ambient temperature under bias 0 +70 C
Storage temperature -65 +150 C
Voltage on any pin with respect to VSS* -0.3 +5.5 V
Voltage on VDD pin with respect to VSS -0.3 +3.6 V
Maximum current on input and/or inactive output pin -5 +5 A
Maximum output current from active output pin -25 25 mA
Maximum current into VDD or out of VSS   75 mA
*Note: This voltage applies to all pins except VDD, P32, and P33.
