ZN425E8

Features: ` ±1/2 LSB Linearity Error` 0 to +70` TTL and 5V CMOS Compatible` Single +5V Supply` Settling Time (D-A) 1 ms Typical` Conversion Time (A-D) 1ms Typical, using Ramp and Compare Technique`Extra Components Required D-A: Reference Capacitor (Direct Voltage Output through 10kOhms Typ.) A-D: ...

product image

ZN425E8 Picture
See larger image
SeekIC No. : 004551726 Detail

ZN425E8: Features: ` ±1/2 LSB Linearity Error` 0 to +70` TTL and 5V CMOS Compatible` Single +5V Supply` Settling Time (D-A) 1 ms Typical` Conversion Time (A-D) 1ms Typical, using Ramp and Compare Technique`E...

ZN425E8 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ZN425E8
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` ±1/2 LSB Linearity Error
` 0 to +70` TTL and 5V CMOS Compatible
` Single +5V Supply
` Settling Time (D-A) 1  ms Typical
` Conversion Time (A-D) 1ms Typical, using Ramp and Compare Technique
`Extra Components Required D-A: Reference Capacitor (Direct Voltage Output through 10kOhms Typ.) A-D: Comparator, Gate, Clock and Reference Capacitor




Pinout

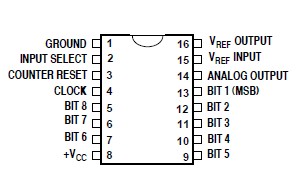

Connection Diagram


Specifications

Supply voltage, VCC.................... +7.0V
Max. voltage, logic and VREF inputs ......+5.5V See note 3
Operating temperature range............ 0 to +70
Storage temperature range ........... -55 to +125


Description

The ZN425 is a monolithic 8-bit D-A converter containing an R-2R ladder network of diffused resistors with precision bipolar switches, and in addition a counter and a 2.5V precision voltage reference. The ZN425 counter is a powerful addition which allows a precision staircase to be generated very simply by clocking the counter.
