ZR36060

· Single-chip JPEG processor which integrates all the modules
· eeded for JPEG encoding and decoding:
- Raster-to-block and block-to-raster converter
- Strip buffer
- JPEG codec
·Motion video compression and expansion capability:
- Up to 25 frames/sec, square pixel and CCIR PAL
- Up to 30 frames/sec, square pixel and CCIR NTSC
· Three modes of Bit Rate Control (BRC):
- Auto Two Pass: for still image compression, produces tightly controlled compressed data file size
- Single pass: for motion video compression, keeps the file size approximately fixed
- No BRC: uses fixed quantization tables
· Glueless interface to common video decoders (e.g., Philips, Brooktree, Samsung, ITT, Harris)
· Glueless interface to the ZR36057, I32 and other common multimedia controllers.
· Supports 8 and 16-bit YUV video interfaces
· Supports master and slave modes of video synchronization
· Interfaces to a variety of host controllers, ranging from the dedicated high-performance ZR36057 PCI controller to generic low-cost microcontrollers
· Flexible compressed data interface:
- 8-bit master mode, supporting transfer of up to 30 Mbytes/ sec
- 16-bit slave mode, supporting transfer of up to 16.7 Mbytes/sec
- 8-bit slave mode, supporting transfer of up to 8.3 Mbytes/ sec
· On-chip video processing, including:
- Mixing of two video sources
- Horizontal (1:2 and 1:4) and vertical (1:2) up and down scaling
- Cropping in compression and programmable background color in decompression
· 3.3V power supply with 5V-tolerant I/O
· Low power consumption:
- 850 mW at 30 MHz operating frequency
- Power down mode for power saving

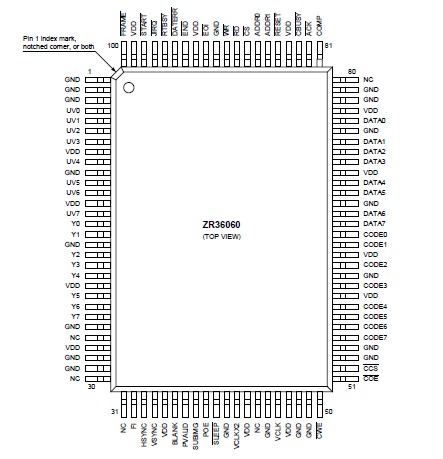

· 100-pin PQFP package

Note: Stresses above these values may cause permanent device failure. Functionality at or above these limits is not implied. Exposure to absolute maximum ratings for extended periods may affect device reliability.
