Product Details

Description



Features:

· Supersedes the Zoran ZR36057.
· Glueless interface to PCI bus (PCI spec. 2.1 compliant).
· Minimum interface to JPEG decoders (ZR36060, ZR36050+ZR36016), MPEG1 and DVD decoders (ZR36110, ZR36700), video decoders and video encoders.
· Bidirectional DMA transfer of compressed data up to 11M bytes/sec.
· DMA transfer of video and mask information.
· Support for fast still image compression and decompression.
· Smooth image down-scaler (up to 5-tap horizontal filter).
· On-chip pixel accurate masking.
· YUV-to-RGB converter with quantization noise reduction by error diffusion.
· Video output: 15- and 16-bit RGB pixel formats, as well as 24-bit (packed and unpacked), and YUV 4:2:2.
· Hardware support for non-contiguous JPEG code buffers.
· Graceful recovery from extreme bus latencies both on video and code transfers.
· Choice of emulated interlaced video display, or single field display, to eliminate motion artifacts.
· Hardware support for simple, cost effective frame grabbing.
· I2C bus master port.
· Plug & Play support.
· 208-pin PQFP package.
· Support for Subsystem ID and Subsystem Vendor ID.




Application

· High quality video and audio capture/playback and editing boards for PCI systems.
· Multimedia/Graphics subsystems using a secondary PCI bus.
· PCI motherboards with multimedia capability.
· JPEG/MPEG1 solutions for PowerPC and Macintosh PCI systems.



Pinout

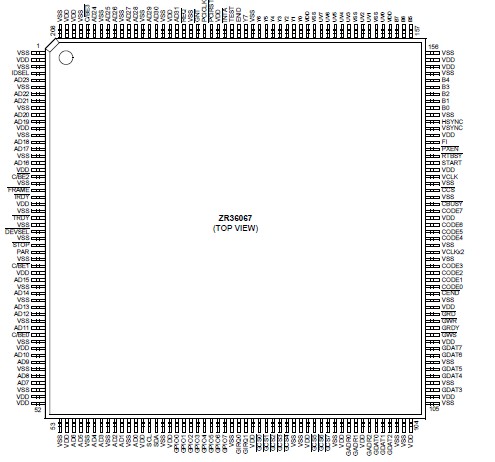

  Connection Diagram


Specifications

Storage Temperature 65 to +150
Supply Voltage (VDD) -0.5 V to +6.0 V
DC Output Voltage 0.5 V to VDD + 0.5
DC Input Voltage -0.5 V to VDD + 0.5
DC Output Current -100 mA to +100 mA
DC Input Current -100 mA to +100 mA
Max Power Dissipation 1.6W @ 33 MHz


NOTE: Stresses above these values may cause permanent device failure. Functionality at or above those limits is not implied. Exposure to absolute maximum ratings for extended periods may affect device reliability.
