Features: · Unity gain bandwidth 300MHz· Slew rate 400V/ ·s· Differential gain 0.01%· Differential phase 0.01· Output current 40mA· Characterized up to 300pF load· ±5 Volt supply· Supply current 7mA per amplifier.· 14 pin SO packageApplication· Video gain stages· CCTV buffer· Video distribution· ...

product image

ZXFV201 Picture
SeekIC No. : 004552384 Detail

ZXFV201: Features: · Unity gain bandwidth 300MHz· Slew rate 400V/ ·s· Differential gain 0.01%· Differential phase 0.01· Output current 40mA· Characterized up to 300pF load· ±5 Volt supply· Supply current 7m...

floor Price/Ceiling Price

Part Number:
ZXFV201
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/27

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Unity gain bandwidth 300MHz
· Slew rate 400V/ ·s
· Differential gain 0.01%
· Differential phase 0.01
· Output current 40mA
· Characterized up to 300pF load
· ±5 Volt supply
· Supply current 7mA per amplifier.
· 14 pin SO package



Application

· Video gain stages
· CCTV buffer
· Video distribution
· RGB buffering
· xDSL
· Home theatre
· Fast ADC signal input drive
· High frequency instrumentation
· Cable driving
· Radar imaging
· Medical imaging



Pinout

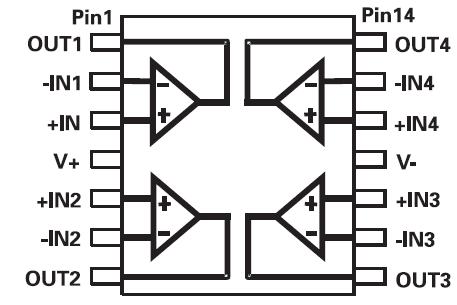

  Connection Diagram


Specifications

Supply Voltage, V+ to V-                                  11V differential ( 5.5V)
Inputs to ground*                                            V+ - 0.5V to V- - 0.5V
Operating Ambient Temperature Range           -40 to 85 Storage -65to 150
Operating Junction Temperature TJMAX**       150°C

**The thermal resistance from the semiconductor die to ambient is typically 120C/W when the SO14 package is mounted on a PCB in free air. The power dissipation of the device when loaded must be designed to keep the device junction temperature below TJMAX.

*During power-up and power-down, these voltage ratings require an appropriate sequence of applying and removing signals and power supplies.




Description

The ZXFV201 is a quad, high speed amplifier designed for video and other high speed applications.

ZXFV201 features low differential gain and phase performance. Together with high output drive and slew rate capability, this brings high performance to video applications.
