Product Details

Description



Features:

·Pout: +11dBm
·Phase Noise: -106 dBc/Hz @100 kHz
·No External Resonator Needed
·Single Supply: +3V @ 80 mA
·QFN Leadless SMT Package, 16mm2


Application

• VSAT & Microwave Radio
• Test Equipment & Industrial Controls
• Military

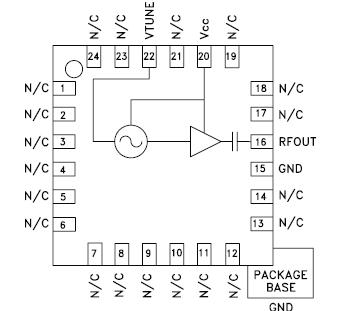

Pinout

Connection Diagram


Specifications

Parameter
Min.
Typ.
Max.
Units
Frequency Range
6.8 - 7.4
GHz
Power Output
8
11
dBm
SSB Phase Noise @ 100 kHz Offset, Vtune= +5V @ RF Output
-1O6
dBc/Hz
Tune Voltage (Vtune)
1
11
V
Supply Current (Icc) (Vcc = +3.0V)
80
mA
Tune Port Leakage Current
10
A
Output Return Loss
9
dB
Harmonics
2nd
3rd

-19
-28

dBc
dBc
Pulling (into a 2.0:1 VSWR)
6
MHz pp
Pushing @ Vtune= +5V
20
MHz/V
Frequency Drift Rate
0.8
MHz/°C



Description

The HMC505LP4 & HMC505LP4E are GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC VCOs with integrated resonators, negative resistance devices, varactor diodes, and buffer amplifi ers. Covering 6.8 to 7.4 GHz, the VCO's phase noise performance is excellent over temperature, shock and vibration due to the oscillator's monolithic structure. Power output of HMC505LP4 & HMC505LP4E is +11 dBm typical from a single supply of +3V @ 80 mA. The voltage controlled oscillator is packaged in a leadless QFN 4x4 mm surface mount package.
