75116(A)

Features: •Higher reliability than µPD75116•Architecture 75X equivalent to 8-bit microcomputer•Minimum instruction execution time (high-speedoperation): 0.95 µs (when operated at 4.19 MHz and5 V)•Instruction execution variable function: 0.95µs/1.91µ...

product image

75116(A) Picture
See larger image
SeekIC No. : 004252008 Detail

75116(A): Features: •Higher reliability than µPD75116•Architecture 75X equivalent to 8-bit microcomputer•Minimum instruction execution time (high-speedoperation): 0.95 µs (when...

75116(A) Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
75116(A)
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•Higher reliability than µPD75116
•Architecture "75X" equivalent to 8-bit microcomputer
•Minimum instruction execution time (high-speedoperation):  0.95 µs (when operated at 4.19 MHz and5 V)
•Instruction execution variable function:  0.95µs/1.91µs/15.3 µs (when operated at 4.19 MHz)
•Many input/output ports:  58
•3-channel on-chip 8-bit timers
•8-bit on-chip serial interface
•Multi-interruptible vector interrupt function


Application

Automobile electrical equipment, etc.


Pinout

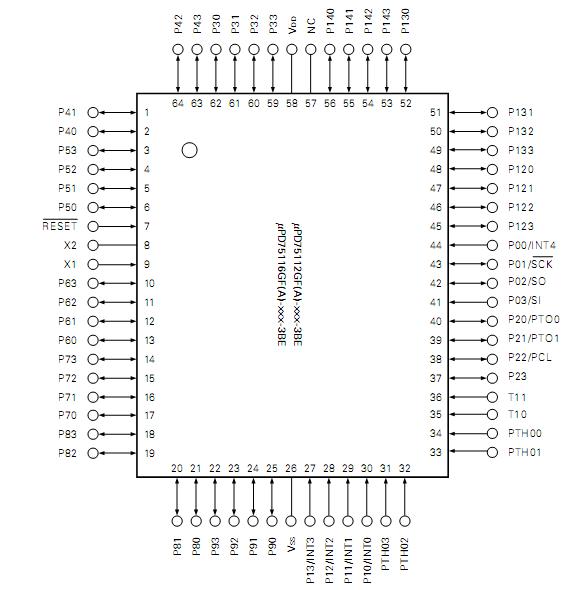

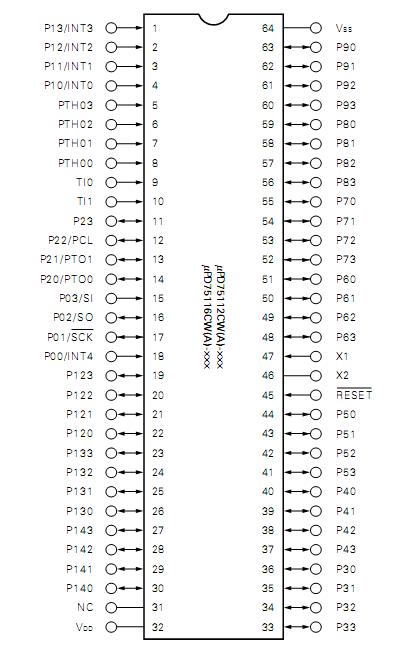

Connection Diagram Connection Diagram


Specifications

Parameter Symbol Test Conditions Ratings Unit
Power supply voltage VDD   0.3 to +7.0 V
Input voltage VI1 Except for ports 12 to 14 0.3 to VDD+0.3 V
VI2*1 Ports 12 to 14 On-chip pull-up resistor 0.3 to VDD +0.3 V
Open drain 0.3 to +13 V
Output voltage VO     0.3 to VDD+0.3 V
Output current high IOH 1 pin Peak value 10 mA
Effective value 5 mA
All pins Peak value 30 mA
Effective value 15 mA
Output current low IOL *2 1 pin Peak value 10 mA
Effective value 5 mA
Total current of ports 0, 2 to 4, 12 to 14 Peak value 50 mA
Effective value 25 mA
  Peak value 50 mA
Effective value 25 mA
Operation temperature Topt     40 to +85 °C
Storage temperature Tstg     65 to +150 °C



Description

The µPD75116(A) is one of the 4-bit single-chip micro-computer 75X series.

The µPD75116(A) is a product with the extended ROMcapacity of the µPD75108(A). In addition of high-speed operations, it can manipulate data in units of 1, 4 and 8 bits.  In particular, the I/O operation of the µPD75116 have been improved by a wide variety of bit control instructions.  The µPD75116 is provided with interface inputs/outputs with peripheral circuits having different power voltages, and analog inputs and suitable forcontrolling automobile electrical equipment, etc.  For the µPD75116(A), an on-chip pin-compatibleone-timePROM product (µPD75P116) is separately available forsystem development evaluation.
