AD6121

Features:

Fully Compliant with IS98A and PCS Specifications
CDMA, W-CDMA, AMPS, and TACS Operation
Linear IF Amplifier
       5.9 dB Noise Figure
       47.5 dB to +47 dB Linear-in-dB Gain Control
Quadrature Demodulator
       Demodulates IFs from 50 MHz to 350 MHz
Integral Low Dropout Regulator
       200 mV Voltage Drop
       Accepts 2.9 V to 4.2 V Input from Battery
Low Power
       10 mA at Midgain
        <1
A Sleep Mode Operation
Companion Transmitter IF Chip Available (AD6122)


Application

CDMA, W-CDMA, AMPS, and TACS Operation
QPSK Receivers


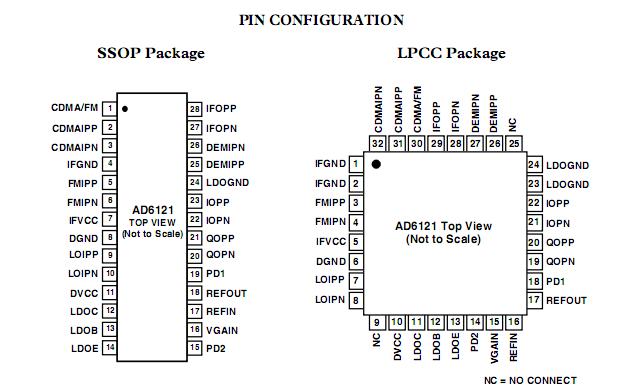

Pinout




Specifications

Supply Voltage VPS1, VPS2 to COM1, COM2  . . . . . . .  +5 V
Internal Power Dissipation². . . . . . . . . . . . . . . . . . 600 mW
Operating Temperature Range  . . . . . . . . .40°C to +85°C
Storage Temperature Range  . . . . . . . . . 65°C to +150°C
Lead Temperature Range (Soldering 60 sec)  . . . . +300°C


Description

The AD6121 is a low power receiver IF subsystem specifically designed for CDMA applications. It consists of high dynamic range IF amplifiers with voltage controlled gain, a divide-by-two quadrature generator, an I and Q demodulator, and a power- down control input. An integral low dropout regulator allows operation from battery voltages from 2.9 V to 4.2 V.

The gain control input accepts an external gain control voltage input from a DAC. It provides 94.5 dB of gain control with a nominal 52.5 dB/V scale factor when using an internal voltage reference. The gain control interface reference input can be connected to either the internal reference or an external reference. The I and Q demodulator provides differential quadrature base- band outputs to interface with CDMA baseband converters. A divide-by-two quadrature generator followed by dual polyphase filters ensures maximum ±2.5° quadrature accuracy. The AD6121 IF Subsystem is fabricated using a 25 GHz ft BiCMOS silicon process and is packaged in a 28-lead SSOP and a 32-leadless LPCC chip scale package (5 mm × 5 mm).
