ADSP-218xN

PERFORMANCE FEATURES 12.5 ns Instruction Cycle Time @1.8 V (Internal), 80 MIPS Sustained Performance Single-Cycle Instruction Execution Single-Cycle Context Switch 3-Bus Architecture Allows Dual Operand Fetches in  Every Instruction Cycle Multifunction Instructions Power-Down Mode Featuring Low CMOS Standby  Power Dissipation with 200 CLKIN Cycle Recovery  from Power-Down Condition Low Power Dissipation in Idle Mode
INTEGRATION FEATURES ADSP-2100 Family Code Compatible (Easy to Use Algebraic Syntax), with Instruction Set Extensions Up to 256K Bytes of On-Chip RAM, Configured as  Up to 48K Words Program Memory RAM  Up to 56K Words Data Memory RAM Dual-Purpose Program Memory for Both Instruction and Data Storage

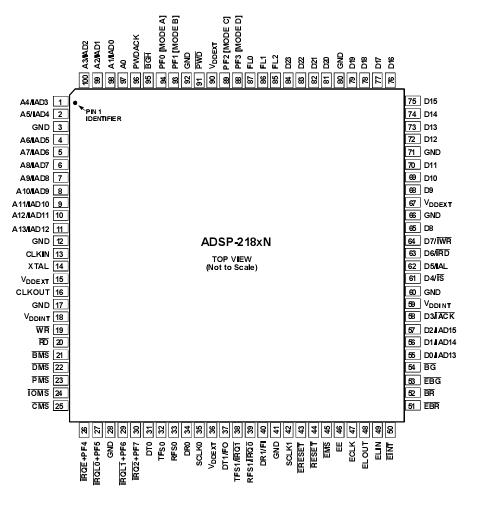

Independent ALU, Multiplier/Accumulator, and Barrel  Shifter Computational Units Two Independent Data Address Generators Powerful Program Sequencer Provides Zero Overhead  Looping Conditional Instruction Execution Programmable 16-Bit Interval Timer with Prescaler 100-Lead LQFP and 144-Ball Mini-BGA

Internal Supply Voltage (VDDINT)¹. . . . . . .... . 0.3 V to +2.2 V
External Supply Voltage (VDDEXT)² . . . . . . . .. 0.3 V to +4.0 V
Input Voltage² . . . . . . . . . . . . . . . . . . . . . ...... 0.5 V to +4.0 V
Output Voltage Swing³ . . . . . . . . . ... /0.5 V to VDDEXT +0.5 V
Operating Temperature Range . . . . . . . . .. . ../40oC to +85^oC
Storage Temperature Range . . . . . . . . . . .... .65oC to +150^oC
Lead Temperature (5 sec) LQFP  . . . . . . . . . . .. . . . ...... 280^oC

The ADSP-218xN series consists of six single chip micro-computers optimized for digital signal processing applica-tions. The high-level block diagram for the ADSP-218xN series members appears on the previous page. All series members are pin-compatible and are differentiated solely bythe amount of on-chip SRAM. This feature, combined with ADSP-21xx code compatibility, provides a great deal of flexibility in the design decision. Specific family members are shown in Table 1.
