SI5315-H(B)

Features: • Colorless transparency lens type• 5mm(T-13/4) all plastic mold type• Low power consumption• High radiant intensityApplicationInfrared remote control and free air transmission systems with low forward voltage and comfortable radiation angle requirements in combin...

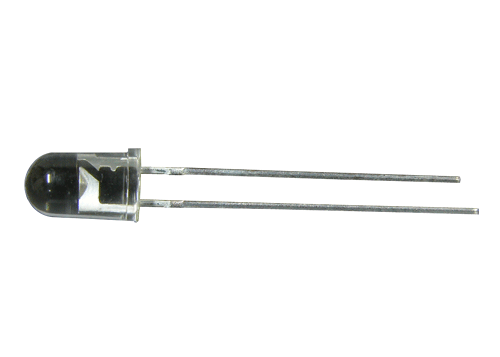

product image

SI5315-H(B) Picture
See larger image
SeekIC No. : 004490450 Detail

SI5315-H(B): Features: • Colorless transparency lens type• 5mm(T-13/4) all plastic mold type• Low power consumption• High radiant intensityApplicationInfrared remote control and free air ...

SI5315-H(B) Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SI5315-H(B)
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Colorless transparency lens type
• 5mm(T-13/4) all plastic mold type
• Low power consumption
• High radiant intensity




Application

Infrared remote control and free air transmission systems with low forward voltage and comfortable radiation angle requirements in combination with PIN photodiodes or phototransistors.






Pinout






Specifications

Characteristic Symbol Ratings Unit
Power Dissipation PD 150 mW
Forward Current IF 100 mA
*1Peak Forward Current IFP 1 A
Reverse Voltage VR 4 V
Operating Temperature Topr -25∼85 °C
Storage Temperature Tstg -30∼100 °C
*2Soldering Temperature Tsol 260 for 5 seconds
*1.Duty ratio = 1/16, Pulse width = 0.1ms
*2.Keep the distance more than 2.0mm from PCB to the bottom of IRED package




Description

This SI5315-H(B) is used as IR remote controller for a wide range of Electric home appliances(TV set, Audio, Airconditioner, DVD, Air controller, Set top box, computer..)and Home automation, Robot cleaner, etcs. GaAs and GaAlAs Infrared Emitting Diode is designed for low forward voltage and high reliability. This device is optimized for efficiency at emission wavelength 940, 880nm and has a high radiant efficiency over a wide range of forward current.
