SN74LVT16646

Features: State-of-the-Art Advanced BiCMOSTechnology (ABT) Design for 3.3-VOperation and Low-Static PowerDissipationMembers of the Texas InstrumentsWidebus(TM) FamilySupport Mixed-Mode Signal Operation (5-VInput and Output Voltages With 3.3-V VCC )Support Unregulated Battery OperationDown to 2.7 V...

product image

SN74LVT16646 Picture
See larger image
SeekIC No. : 004499429 Detail

SN74LVT16646: Features: State-of-the-Art Advanced BiCMOSTechnology (ABT) Design for 3.3-VOperation and Low-Static PowerDissipationMembers of the Texas InstrumentsWidebus(TM) FamilySupport Mixed-Mode Signal Operat...

SN74LVT16646 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SN74LVT16646
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

State-of-the-Art Advanced BiCMOS
Technology (ABT) Design for 3.3-V
Operation and Low-Static Power
Dissipation
Members of the Texas Instruments
Widebus(TM) Family
Support Mixed-Mode Signal Operation (5-V
Input and Output Voltages With 3.3-V VCC )
Support Unregulated Battery Operation
Down to 2.7 V
Typical VOLP (Output Ground Bounce)
< 0.8 V at VCC  = 3.3 V, TA  = 25
ESD Protection Exceeds 2000 V Per
MIL-STD-883C, Method 3015; Exceeds
200 V Using Machine Model
(C = 200 pF, R = 0)
Latch-Up Performance Exceeds 500 mA
Per JEDEC Standard JESD-17
Bus-Hold Data Inputs Eliminate the Need
for External Pullup Resistors
Support Live Insertion
Distributed VCC  and GND Pin Configuration
Minimizes High-Speed Switching Noise
Flow-Through Architecture Optimizes
PCB Layout
Package Options Include Plastic 300-mil
Shrink Small-Outline (DL) and Thin Shrink
Small-Outline (DGG) Packages and 380-mil
Fine-Pitch Ceramic Flat (WD) Package
Using 25-mil Center-to-Center Spacings


Pinout

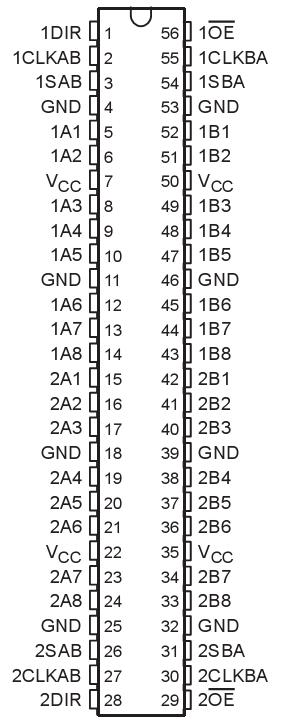

Connection Diagram


Specifications

Supply voltage range, VCC   . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . ..............  0.5 V to 4.6 V
Input voltage range, VI  (see Note 1)  . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . ............. . . . .  0.5 V to 7 V
Voltage range applied to any output in the high state or power-off state, VO  (see Note 1)  . . . .  0.5 V to 7 V
Current into any output in the low state, IO : SN54LVT16646  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  96 mA
                                                                        SN74LVT16646 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .  128 mA
Current into any output in the high state, IO  (see Note 2): SN54LVT16646 . . . . . . . . . . . . . . . . . . .. . . .  48 mA
                                                                                              SN74LVT16646 . . . . . . . . . . . . . . . . . . . . .. .  64 mA
Input clamp current, IIK  (VI < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .    50 mA
Output clamp current, IOK   (VO < 0)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . .  50 mA
Maximum power dissipation at TA  = 55 (in still air) (see Note 3):DGG package . . . . . . . . . . . . . . . ....... . .  1 W
                                                                                                        DL package . . . . . . . . . . . . . . . . . .... . . 1.4 W
Storage temperature range, Tstg. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... 65 to 150



Description

The SN74LVT16646 are 16-bit bus transceivers designed for low-voltage (3.3-V) VCC  operation, but with the capability to provide a TTL interface to a 5-V system environment.

These devices SN74LVT16646 can be used as two 8-bit transceivers or one 16-bit transceiver. Data on the A or B bus is clocked into the registers on the low-to-high transition of the appropriate clock (CLKAB or CLKBA) input. Figure 1 illustrates the four fundamental bus-management functions that can be performed with the LVT16646.

Output-enable (OE) and direction-control (DIR) inputs are provided by SN74LVT16646 to control the transceiver functions. In the transceiver mode, data present at the high-impedance port may be stored in either register or in both. The select-control (SAB and SBA) inputs can multiplex stored and real-time (transparent mode) data. The circuitry used for select control eliminates the typical decoding glitch that occurs in a multiplexer during the transition between stored and real-time data. The direction control (DIR) of SN74LVT16646 determines which bus receives data when OE is low. In the isolation mode (OE high), A data may be stored in one register and/or B data may be stored in the other register.
