SP6341

Features:

Low operating voltage of 1.6V
Low operating current of 20A typical
Monitors up to 3 supplies simultaneously
Adjustable input monitors down to 0.5V
Reset asserted down to 0.9V
2% accuracy over temperature range
Open Drain (OD) or CMOS RSTB output
4 Reset Timeout Periods:50mS, 100mS, 200mS, and 400mS
Watch Dog Timer Function -- WDI
Independent OD or CMOS Watchdog utput (Active Low) -- WDOB
Manual Reset Input (Active Low) -- MRIB
8 Pin TSOT package

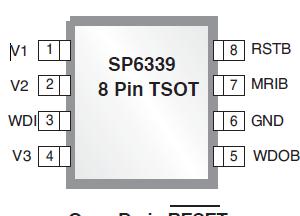

Pinout




Specifications

These are stress ratings only and functional operation f the device at these ratings or any other above those n cated in the operation sections of the specifications elow is not implied. Exposure to absolute maximum ating conditions for extended periods of time ay affect reliability and cause permanent damage to he device.
Terminal Voltage (with respect to GND)
V1, V2.................................................... -0.3 to +6V
Open-Drain RSTB,
WDOB.....................................................-0.3 to +6V
CMOS RST, RSTB,
WDOB........................................... -0.3 to (V1+0.3V)
Feature and Pinout Diagram
Input Current/Output
Current.................................,,........................20mA
V3, MRIB, WDI........................-0.3 to (V1+0.3V)
Operating Temperature
Range...............................................-40°C to +85°C
Storage Temperature
Range...............................................-65°C to 150°C
Thermal Resistance JA..............................134°C/W

Description

SP6339-SP6341 Triple Power Supervisory Circuit Family is a family of microprocessor eset supervisory circuits with multiple reset voltages. The family provides low voltage onitoring ability for up to three supplies with two precision factory-set thresholds and one ser defined custom threshold. These circuits perform a single function: if any of the input upply voltages drops below its associated threshold, reset outputs are asserted. Products n the family offer manual reset and watchdog functionalities. SP6339 and SP6341 are ackaged in an 8-pin TSOT package. All devices are fully specified over -40 to +85emperature range.
