SPS-33120BG

Features: · Hot-Pluggable SFP Footprint LC Optical Transceiver· Small Form-Factor Pluggable (SFP) MSA compatible·Compliant with SONET OC-3 / SDH STM-1·1550 nm DFB LD Transmitter· 34 dB Power Budget at Least· Distance up to 120 km· AC/AC Coupling according to MSA· Single +3.3 V Power Supply· RoHS C...

product image

SPS-33120BG Picture
See larger image
SeekIC No. : 004501350 Detail

SPS-33120BG: Features: · Hot-Pluggable SFP Footprint LC Optical Transceiver· Small Form-Factor Pluggable (SFP) MSA compatible·Compliant with SONET OC-3 / SDH STM-1·1550 nm DFB LD Transmitter· 34 dB Power Budget ...

SPS-33120BG Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SPS-33120BG
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Hot-Pluggable SFP Footprint LC Optical Transceiver
· Small Form-Factor Pluggable (SFP) MSA compatible
·Compliant with SONET OC-3 / SDH STM-1
·1550 nm DFB LD Transmitter
· 34 dB Power Budget at Least
· Distance up to 120 km
· AC/AC Coupling according to MSA
· Single +3.3 V Power Supply
· RoHS Compliant
· 0 to 70oC Operation: SPS-33120G
· -10 to 85oC Operation: SPS-33120BG
· Class 1 Laser International Safety Standard IEC-60825 Compliant


Application

· ATM Switches and Routers
· SONET / SDH Switch Infrastructure
· Fast Ethernet Applications

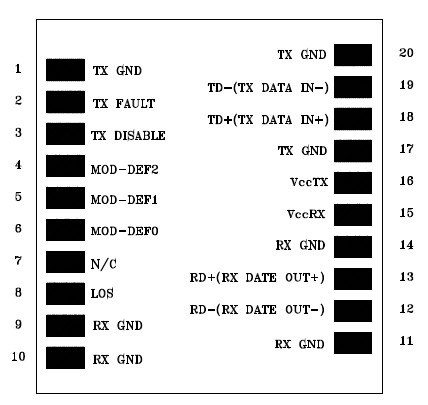

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Min
Max
Units
Notes
Storage Temperature
Tstg
-40
85
oC
Operating Case Temperature
Topr
0
-10
-40
70
85
85
oC
SPS-33120G
SPS-33020BG
SPS-33120AG
Power Supply Voltage
Vcc
-0.5
3.6
V



Description

The SPS-33120BG series single mode transceiver is small form factor pluggable module for bi-directional serial optical data communications such as SONET OC-3 / SDH STM-1 and Fast Ethernet. It is with the SFP 20-pin connector to allow hot plug capability. This module is designed for single mode fiber and operates at a nominal wavelength of 1550 nm. The transmitter section uses a 1550 nm multiple quantum well DFB laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section SPS-33120BG uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
