TLS1215

Features: • Wide Bandwidth . . . Typ 100 MHz at 3 dB• 0-V to 4-V Digital Level-Contrast Control Voltage Range• 0-V to 4-V Digital Level-Gain Adjust Control Voltage Range• Individual Gain Adjust for Video Amplifiers• Output-Stage Blanking• Fewer Peripheral Compon...

product image

TLS1215 Picture
See larger image
SeekIC No. : 004522139 Detail

TLS1215: Features: • Wide Bandwidth . . . Typ 100 MHz at 3 dB• 0-V to 4-V Digital Level-Contrast Control Voltage Range• 0-V to 4-V Digital Level-Gain Adjust Control Voltage Range• Ind...

TLS1215 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLS1215
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Wide Bandwidth . . . Typ 100 MHz at 3 dB
• 0-V to 4-V Digital Level-Contrast Control Voltage Range
• 0-V to 4-V Digital Level-Gain Adjust Control Voltage Range
• Individual Gain Adjust for Video Amplifiers
• Output-Stage Blanking
• Fewer Peripheral Components Required Than for Competitive Syste


Pinout

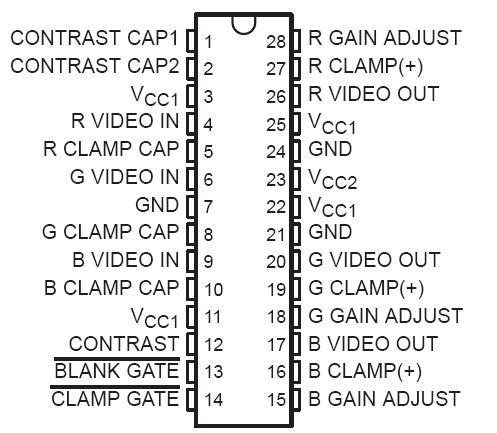

Connection Diagram


Specifications

Supply voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13.5 V
Input voltage range, VI (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 V to VCC
Video output current (per channel) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 mA
Total power dissipation at (or below) 25°C free-air temperature (see Note 2) . . . . . . . . . . . . . . . . . . . . 2.1 W
Operating virtual junction temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .150°C
Operating free-air temperature range, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0°C to 70°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. All VCC pins must be externally wired together to prevent internal damage during VCC power-on/off cycles.
2. For operation above 25°C free-air temperature, derate linearly to 1.5 W at the rate of 13 mW/°C.


Description

The TLS1215 is a wide-band video preamplifier system intended for high-resolution RGB (red-green-blue) color monitors with blanking control features. Each video amplifier (R, G, and B) contains a gain set for adjusting maximum system gain. The TLS1215 provides digital level-operated contrast, brightness, and gain adjustment. All the control inputs offer high input impedance and an operation range from 0 V to 4 V for easy interface to the serial digital buses. The TLS1215 also contains a blanking circuit, which clamps the video output voltage during blanking period to as low as 0.2 V above ground.

The device operates from a 12-V supply. The TLS1215 is characterized for operation from 0°C to 70°C.
