UPD444008L

Features: • 524,288 words by 8 bits organization• Fast access time : 8, 10, 12, ns (MAX.)• Output Enable input for easy application• Single +3.3 V power supplyPinoutSpecifications Parameter Symbol Condition Rating Unit Supply voltage VCC 0....

product image

UPD444008L Picture
See larger image
SeekIC No. : 004538156 Detail

UPD444008L: Features: • 524,288 words by 8 bits organization• Fast access time : 8, 10, 12, ns (MAX.)• Output Enable input for easy application• Single +3.3 V power supplyPinoutSpecifica...

UPD444008L Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UPD444008L
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 524,288 words by 8 bits organization
• Fast access time : 8, 10, 12, ns (MAX.)
• Output Enable input for easy application
• Single +3.3 V power supply

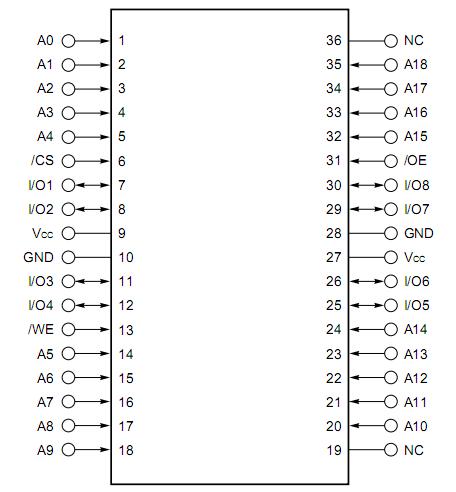

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Condition
Rating
Unit
Supply voltage
VCC

0.5 Note to +4.0
V
Input / Output voltage
VT

0.5 Noteto +4.0
V
Operating ambient temperature
TA

0 to 70
°C
Storage temperature
Tst

55 to +125
°C



Description

The UPD444008L is a high speed, low power, 4,194,304 bits (524,288 words by 8 bits) CMOS static RAM. Operating supply voltage is 3.3 V ± 0.3 V.
The UPD444008L is packaged in 36-pin PLASTIC SOJ.
