aP89010

Features: ` Standard CMOS process.` Embedded 512K/265K bits EPROM.` 21/10 Sec Voice Length at 6 KHz sampling and 4-bit ADPCM compression.`Maximum 12 voice groups.` Combination of voice building blocks to extend playback duration.` 960 table entries are available for voice block combinations.` User...

product image

aP89010 Picture
See larger image
SeekIC No. : 004286401 Detail

aP89010: Features: ` Standard CMOS process.` Embedded 512K/265K bits EPROM.` 21/10 Sec Voice Length at 6 KHz sampling and 4-bit ADPCM compression.`Maximum 12 voice groups.` Combination of voice building bloc...

aP89010 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
aP89010
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Standard CMOS process.
` Embedded 512K/265K bits EPROM.
` 21/10 Sec Voice Length at 6 KHz sampling and 4-bit ADPCM compression.
` Maximum 12 voice groups.
` Combination of voice building blocks to extend playback duration.
` 960 table entries are available for voice block combinations.
` User selectable PCM or ADPCM data compress.
` Two triggering modes are available by whole chip option during voice compilation.
     - Key Trigger Mode Combinations of S1 ~ S4 to trigger up to 12 voice groups; SBT for sequential trigger.
     - CPU Parallel Trigger Mode Combinations of S1 ~S4 with SBT goes HIGH to strobe
start the voice playback.
` Voice Group Trigger Options: Edge / Level; Hold / Un-hold; Retrigger / Non-retrigger.
` Whole Chip Options: Ramp / No-ramp; Output Options; Key / CPU trigger mode.
` 16ms (@ 8KHz sampling rate) Debounce Time for both Key and CPU Trigger Modes.
` RST pin set to HIHG to stop playback at once.
` Three user programmable outputs for STOP plus, BUSY signal and flashing LED.
` Built-in oscillator to control sampling frequency with an external resistor.
` 2.2V 3.6V single power supply and < 5uA low stand-by current.
` PWM Vout1 and Vout2 drive speaker directly.
` D/A COUT to drive speaker through an external BJT.
` Development System support voice compilation and options selection.


Pinout

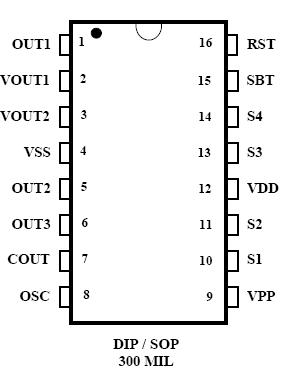

Connection Diagram


Specifications

Symbol
Rating
Unit
VDD - VSS
-0.5 ~ +4.5
V
VIN
VSS - 0.3<VIN<VDD + 0.3
V
VOUT
VSS <VOUT<VDD
V
T (Operating):
DIP
SOP
-10 ~ +70
-40 ~ +85
T (Junction)
-40 ~ +125
T (Storage)
-55 ~ +125



Description

aP89021/010 high performance Voice OTP is fabricated with Standard CMOS process with embedded 512K/256K bits EPROM. aP89010 can store up to 21/10 sec voice message with 4-bit ADPCM compression at 6KHz sampling rate. 8-bit PCM is also available as user selectable option. Two trigger modes, simple Key trigger mode and Parallel CPU trigger mode facilitate different user interface. User selectable triggering and output signal options provide maximum flexibility to various applications. Built-in resistor controlled oscillator, 8-bit current mode D/A output and PWM direct speaker driving output minimize the number of external components. PC controlled programmer and developing software are available.
