eZ80190

Features:

• eZ80190 microprocessor operating at 50MHz
• Ethernet Media Access Controller+ PHY with RJ45 connector
• 512KB zero-wait-state onboard SRAM
• 1MB onboard NOR Flash ROM (9 0100ns)
• Real-Time Clock with 3 2.768kHz Crystal with battery backup
• I/O connector provides 32 general-purp ose 5V-tolerant I/O pinouts
• Onboard peripheral bus connector provides I/O bus for external peripheral connections (IRQ, CS, 24 address, 8 data)
• Small footprin t 78.7mm x 63.5mm; heigh t is 24mm
• Module operates from extern al 3.3V power supply
• Standard operating temperature range: 0ºC to +70ºC

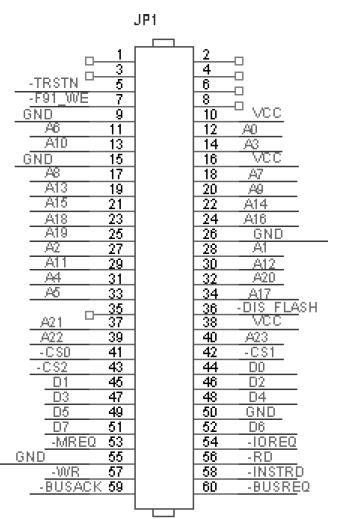

Pinout




Specifications

Stresses greater than those listed in Table 6 can cause permanent damage to the device. These ratings are stress ratings only. Operation of the device at any condition outside those indicated in the operational sections of these specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. For improved reliability, unused inputs should be tied to one of the supply voltages (V_DD or V_SS).

Parameter	Min	Max	Units
Standard operating temperature	0	+70	ºC
Storage temperature	45	+85	ºC
Operating Humidity (RH @ 50ºC)	25%	90%
Operating Voltage (±5%)	-	3.3	V

Description

The eZ80190 Module is a compact, high-performance Ethernet module specially designed for the rapid development and deployment of embedded systems requiring control and Internet/Intranet connectivity. It features the low-cost eZ80190 microprocessor powered by ZiLOG's latest power-efficient, high-speed eZ80® CPU.

The eZ80190 microprocessor is a high-speed single-cycle instruction-fetch microprocessor, which can operate with a clock speed of 50MHz. It can operate in Z80- compatible addressing mod e (64KB) or full 24-bit addressing mod e (16MB).

The rich peripheral set of the eZ80190 makes it suitable for a variety of applications, including industrial control, communication, security, automation, point-ofsale terminals, and embedded networking applications.
