Product Details

Description



Features:

System Function
·USB 1.1 compatible and USB 2.0 compliant
·USB-ZIP/USB-HDD boot-up
·Support multi-disk
·Multi-level security protection
·Support Read-only privilege
·Compatible with Windows 98/Me/2K/XP,MacOS 9+, and Linux kernel 2.4+
·Configurable Removable or Fixed drive type under Windows
·Support unique serial number for each disk
·Configurable USB vendor/product ID
·Support customized disk ID by end-user
·Read speed > 1000K byte/s
·Write speed > 800K byte/s
·Write protect switch
·Ready/busy LED
Flash Control
·Support 128Mb to 8Gb NAND-type flash,AND flash is supported with i5068-Z.
·Connect up to four flash chips
·Wear-leveling extends product life time
·Defect block concealment and dynamic defect block handling
·On-the-fly ECC enhances reliability
Chip Hardware
·On-chip voltage detector for power-on-reset
·Single 3.3V voltage supply
·6MHz external clock for low EMI
·32 pin TSOP Type I package

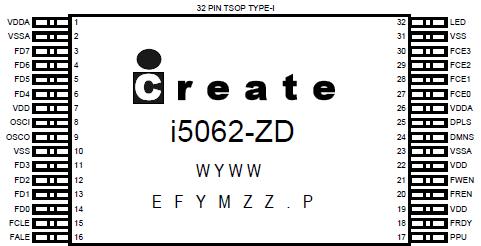

Pinout

Connection Diagram


Description

i5062-ZD is a single-chip USB flash disk controller which can handle up to four NANDtype flash memory chips. It is compatible with USB 1.1 and also compliant with USB 2.0. The features of USB-boot-up and driver-less make the flash disk very convenient for end-users.

i5062-ZD is designed with iCreate flash interface technology to provide wear-leveling and on-the-fly error-correction coding, which enhance the life time of the disk. The flexibility of the interface design also ensures supporting to AND flash by firmware change and MLC NAND flash in the protocol level.

For data security, i5062-ZD supports multi-level protection mechanism. In the nonprotection level, data in the disk is fully accessible. In low protection level, disk is readonly to protect from virus and accidental file removal. In high protection level, the disk data cannot be accessed.

User-programmable device name based on USB Mass Storage protocol (SCSI) is also provided. The end-users can change the device name that appears in Windows.
