IP1202PBF

Switching Converters, Regulators & Controllers

product image

IP1202PBF Picture
See larger image
SeekIC No. : 00585508 Detail

IP1202PBF: Switching Converters, Regulators & Controllers

IP1202PBF Data Sheet

floor Price/Ceiling Price

US $ 8.95~9.22 / Piece | Get Latest Price
Part Number:
IP1202PBF
Mfg:
International Rectifier
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • Unit Price
  • $9.22
  • $9.13
  • $9.04
  • $8.95
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Output Current : 30 A Input Voltage : 5.5 V to 13.2 V
Switching Frequency : 200 KHz to 400 KHz Packaging : Tube

Description

Output Voltage :
Output Power :
Operating Temperature Range :
Mounting Style :
Package / Case :
Packaging : Tube
Output Current : 30 A
Input Voltage : 5.5 V to 13.2 V
Switching Frequency : 200 KHz to 400 KHz


Features:

• 5.5V to 13.2V input voltage
• 0.8V to 5V output voltage
• 2 Phase Synchronous Buck Power Block
• 180 out of phase operation
• Single or Dual output capability
• Dual 15A maximum load capability
• Single 2 phase 30A maximum load capability
• 200-400kHz per channel nominal switching frequency
• Over Current Hiccup or Over Current Latch
• External Synchronization Capable
• Overvoltage protection
• Individual soft start per outputs
• Over Temperature protection
• Internal features minimize layout sensitivity *
• Ease of layout
• Very small outline 15.5mm x 9.25mm x 2.6mm


Specifications

Parameter
Symbol
Min
Typ
Max
Units
Conditions
VIN
VIN
-0.3
15
V
Feedback
VFB1/VFB2
-0.3
6
Output Overvoltage Sense
VFB1S/VFB2S
-0.3
6
PGOOD
-0.3
15
ENABLE
-0.3
15
Soft Start
SS1/SS2
-0.3
6
Vp-ref
-0.3
6
HICCUP
HICCUP
-0.3
15
SYNC
-0.3
6
Output RMS Current Per Channel
IoutVSW
15
A
2 Independent outputs. See Fig. 3
Block Temperature
TBLK
-40
125
Capable of start up over full temperature
range. See Note 1.

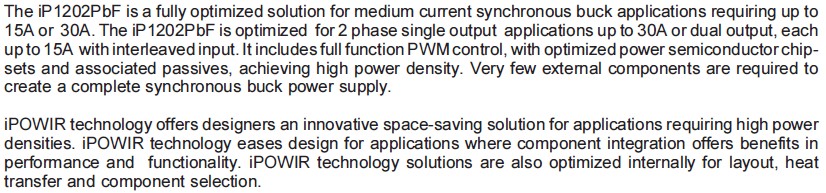

Description

Connection Diagram


Parameters:

Technical/Catalog InformationIP1202PBF
VendorInternational Rectifier
CategoryIntegrated Circuits (ICs)
TypeStep-Down (Buck)
Number of Outputs2
Voltage - Input5.5 ~ 13.2 V
Voltage - Output0.8 ~ 5 V
Current - Output30A
Power - Output7W
Package / Case198-BGA (161 bumps)
PackagingTube
Internal Switch(s)Yes
SynchronousYes
Rds (On)-
Operating Temperature-40°C ~ 125°C
Frequency - Switching200kHz ~ 400kHz
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names IP1202PBF
IP1202PBF
