Monitor and Control Multiple Power Supplies
• Simultaneously monitors up to 10 powersupplies
• Provides up to 14 output control signals
• Programmable digital and analog circuitry
Embedded PLD for Sequence Control
• 24-macrocell CPLD implements both statemachines and combinatorial logic functions
Embedded Programmable Timers
• Four independent timers
• 32s to 2 second intervals for timing sequences
Analog Input Monitoring
• 10 independent analog monitor inputs
• Two programmable threshold comparators per analog input
• Hardware window comparison
• 10-bit ADC for I2C monitoring (ispPACPOWR1014A only)
High-Voltage FET Drivers
• Power supply ramp up/down control
• Programmable current and voltage output
• Independently configurable for FET control or digital output
2-Wire (I2C/SMBus™ Compatible) Interface
• Comparator status monitor
• ADC readout
• Direct control of inputs and outputs
• Power sequence control
• Only available with ispPAC-POWR1014A
3.3V Operation, Wide Supply Range 2.8V to 3.96V
• In-system programmable through JTAG
• Industrial temperature range: -40°C to +85°C

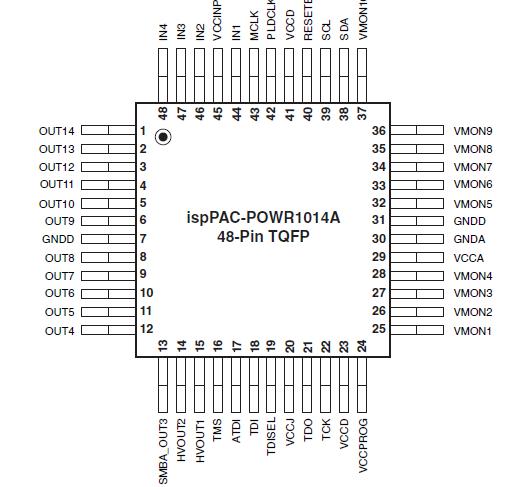

• 48-pin TQFP package, lead-free option
Symbol |
Parameter |
Conditions |
Min. |
Max. |
Units |
VCCD |
Core supply |
-0.5 |
4.5 |
V | |
VCCA |
Analog supply |
-0.5 |
4.5 |
V | |
VCCINP |
Digital input supply (IN[1:4]) |
-0.5 |
6 |
V | |
VCCJ |
JTAG logic supply |
-0.5 |
6 |
V | |
VCCPROG |
E2programming supply |
-0.5 |
4 |
V | |
VIN |
Digital input voltage (all digital I/O pins) |
-0.5 |
6 |
V | |
VMON |
VMON input voltage |
-0.5 |
6 |
V | |
VTRI |
Voltage applied to tri-stated pins |
HVOUT[1:2] |
-0.5 |
11 |
V |
OUT[3:14] |
-0.5 |
6 |
V | ||
ISINKMAXTOTAL |
Maximum sink current on any output |
23 |
mA | ||
TS |
Storage temperature |
-65 |
150 |
°C | |
TA |
Ambient temperature |
-65 |
125 |
°C |
Lattice's Power Manager II ispPAC-POWR1014/A is a general-purpose power-supply monitor and sequence controller, incorporating both in-system programmable logic and in-system programmable analog functions implemented in non-volatile E 2 CMOS® technology. The ispPAC-POWR1014/A device provides 10 independent analog input channels to monitor up to 10 power supply test points. Each of these input channels has two independently programmable comparators to support both high/low and in-bounds/out-of-bounds (window-compare) monitor functions. Four general-purpose digital inputs are also provided for miscellaneous control functions.
The ispPAC-POWR1014/A provides 14 open-drain digital outputs that can be used for controlling DC-DC converters, low-drop-out regulators (LDOs) and optocouplers, as well as for supervisory and general-purpose logic interface functions. Two of these outputs (HVOUT1-HVOUT2) may be configured as high-voltage
