Features:

• Various display modes
       1/2 duty: 112 segment outputs or 96 segment outputs + 8 LED outputs
       1/3 duty: 168 segment outputs or 144 segment outputs + 8 LED outputs
       1/4 duty: 224 segment outputs or 192 segment outputs + 8 LED outputs
• Key scan circuit (key source outputs are shared with LCD driver outputs)
• Independent LCD driver power supply VLCD (can be set to VDD to 6.5 V)
• Serial data input/output (SCK, STB, DATA)
• On-chip oscillator incorporated
• Power-ON reset circuit


Pinout

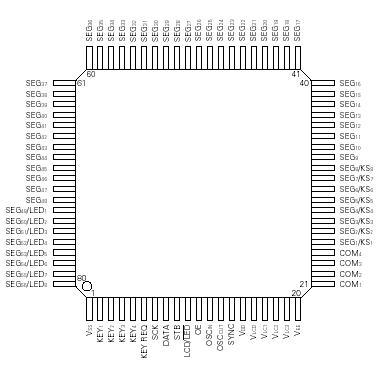

Connection Diagram


Specifications

Parameter
Symbol
Ratings
Unit
Logic supply voltage
VDD
0.3 to +7.0
V
Logic input voltage
VIN
0.3 to VDD + 0.3
V
Logic output voltage (DATA)
VOUT
0.3 to +7.0
V
LCD drive supply voltage
VLCD
0.3 to +7.0
V
LCD drive supply input voltage
VLC1 to VLC3
0.3 to VLCD + 0.3
V
Driver output voltage
(segment, common, LED)
VOUT2
0.3 to VLCD + 0.3
V
LED output current
IO
+20
mA
Operating ambient temperature
Topt
40 to +85
°C
Storage temperature
Tstg
55 to +150
°C
Permissible package power
dissipation
PT
1000
mW
