Product Details

Description



Features:

· True single chip FSK transceiver
· Few external components required
· No set up or configuration
· No coding of data required
· 20kbit/s data rate
· 2 channels
· Wide supply range
· Very low power consumption
· Standby mode


Application

· Alarm and Security Systems
· Automatic Meter Reading (AMR)
· Home Automation
· Remote Control
· Surveillance
· Automotive
· Telemetry
· Toys
· Wireless Communication

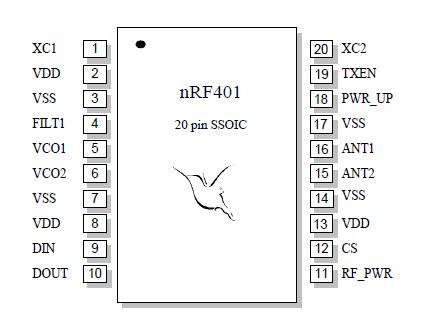

Pinout

Connection Diagram


Specifications

Supply voltages
VDD........................................... - 0.3V to +6V
VSS ........................................................... 0V
Input voltage
VI ................................. - 0.3V to VDD + 0.3V
Output voltage
VO................................. - 0.3V to VDD + 0.3V
Power dissipation
PD (TA=25°C)...................................250mW
Temperatures
Operating Temperature.. -25°C to +85°C
Storage Temperature... -40°C to +125°C
Note: Stress exceeding one or more of the limiting values may cause permanent damage to the device.


Description

nRF401 is a true single chip UHF transceiver designed to operate in the 433MHz ISM (Industrial, Scientific and Medical) frequency band. It features Frequency Shift Keying (FSK) modulation and demodulation capability. nRF401 operates at bit rates up to 20kbit/s. Transmit power can be adjusted to a maximum of 10dBm. Antenna interface is differential and suited for low cost PCB antennas. nRF401 features a standby mode which makes power saving easy and efficient. nRF401 operates from a single +3-5V DC supply.

As a primary application, nRF401 is intended for UHF radio equipment in compliance with the European Telecommunication Standard Institute (ETSI) specification EN 300 220-1 V1.2.1.
