rfRXD0920

Features:

• Low cost single conversion superheterodynereceiver architecture
• Compatible with rfPIC™ and rfHCS series of RFtransmitters
• Easy interface to PICmicro® microcontroller(MCU) and KEELOQ® decoders
• VCO phase locked to quartz crystal reference:
- Narrow receiver bandwidth
- Maximizes range and interference immunity
• Selectable LNA gain control for improved dynamic range
• Selectable IF bandwidth via external ceramic IFfilter
• Received Signal Strength Indicator (RSSI) forsignal strength indication (FSK, FM) and ASK demodulation
• FSK/FM quadrature (phase coincidence) detector demodulator
• 32-Lead LQFP package




Application

• Wireless remote command and control
• Wireless security systems
• Remote Keyless Entry (RKE)
• Low power telemetry
• Low power FM receiver
• Home automation
• Remote sensing

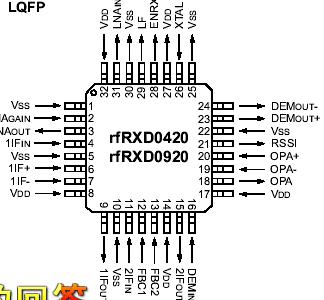

Pinout






Specifications

Parameter NameValueRXD Sensitivity FSK-109RXD Selectable LNA GainYesFreq. Range800 to 930Data Rate Kbps80RXD IF FreqRange0.455 to 21.4 RXD RSSIYesIO Pins0

Parameter Name	Value
RXD Sensitivity FSK	-109
RXD Selectable LNA Gain	Yes
Freq. Range	800 to 930
Data Rate Kbps	80
RXD IF FreqRange	0.455 to 21.4
RXD RSSI	Yes
IO Pins	0

Description

The rfRXD0920 is a low cost, compact single frequency short-range radio receiver requiring only a minimum number of external components for a complete receiver system. The covers 800 MHz to 930 MHz. They share a common architecture. They can be configured for Amplitude Shift Keying (ASK), Frequency Shift Keying (FSK), or FM modulation. The rfRXD0920 is compatible with rfPIC? and rfHCS series of RF transmitters.
