` Large radiant sensitive area (A=7.5 mm2) ` Wide viewing angle = ± 60 ° ` Improved sensitivity ` Fast response times ` Low junction capacitance ` Plastic package with universal IR filter ` Option "L": long lead package optional available with suffix "L"; e.g.: BPV23FL

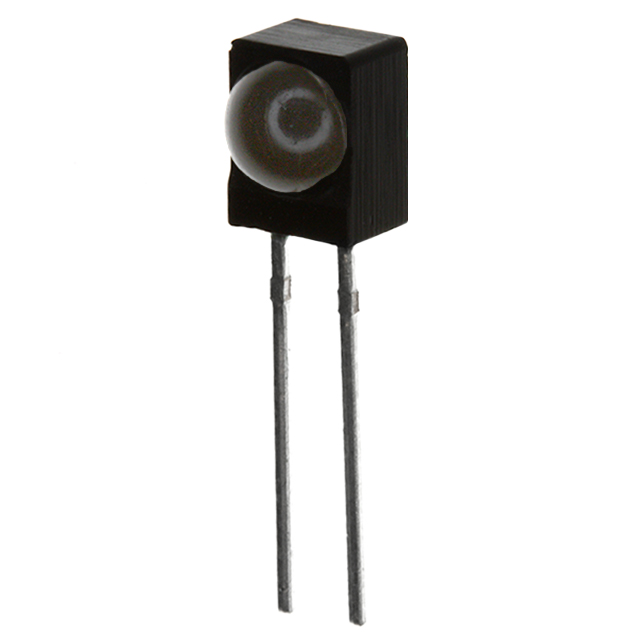

BPV22NF Typical Application
Infrared remote control and free air transmission systems in combination with IR emitter diodes (TSU., TSI., or TSH.Series). High sensitivity detector for high data rate transmission systems. The IR filter matches perfectly to the high speed infrared emitters in the 830 nm to 880 nm wavelength range.
BPV23F Parameters
Technical/Catalog Information
BPV23F
Vendor
Vishay/Semiconductors
Category
Sensors, Transducers
Lead Free Status
Lead Free
RoHS Status
RoHS Compliant
Other Names
BPV23F BPV23F 751 1008 ND 7511008ND 751-1008
BPV23F General Description
BPV23F(L) is a high speed and high sensitive PIN photodiode in a plastic package with a spherical side view lens. The epoxy package itself is an IR filter, spectrally matched to GaAs or GaAs/GaAlAs IR emitters ( p = 950 nm)
Lens radius and chip position are perfectly matched to the chip size, giving high sensitivity without compromising the viewing angle.
In comparison with flat packages the lens package achieves a sensitivity improvement of 80%.
BPV23F Maximum Ratings
Parameter
Test Conditions
Symbol
Value
Unit
Reverse Voltage
VR
60
V
Power Dissipation
Tamb 25
PV
215
mW
Junction Temperature
Tj
100
Operating Temperature Range
Tamb
55...+100
Storage Temperature Range
Tstg
55...+100
Soldering Temperature
t 5 s
Tsd
260
Thermal Resistance Junction/Ambient
RthJA
350
K/W
BPV23F Features
`Large radiant sensitive area (A = 5.7 mm2) `Wide viewing angle = ± 60 ° `Improved sensitivity `Fast response times `Low junction capacitance `Plastic package with IR filter `Filter designed for 950 nm transmission `Option "L": long lead package optional available with suffix "L"; e.g.: BPV23FL
BPV23F Typical Application
Infrared remote control and free air transmission systems in combination with IR emitter diodes (TSU... or TSI...Series).
BPV23NF Parameters
Technical/Catalog Information
BPV23NF
Vendor
Vishay/Semiconductors
Category
Sensors, Transducers
Lead Free Status
Lead Free
RoHS Status
RoHS Compliant
Other Names
BPV23NF BPV23NF 751 1009 ND 7511009ND 751-1009
BPV23NF General Description
Silicon PIN Photodiode, RoHS Compliant
BPV23NF Maximum Ratings
Parameter
Test Conditions
Symbol
Value
Unit
Reverse Voltage
VR
60
V
Power Dissipation
Tamb 25
PV
215
mW
Junction Temperature
Tj
100
Operating Temperature Range
Tamb
55...+100
Storage Temperature Range
Tstg
55...+100
Soldering Temperature
t 5 s
Tsd
260
Thermal Resistance Junction/Ambient
RthJA
350
K/W
BPV23NF Features
` Large radiant sensitive area (A = 5.7 mm2) ` Wide viewing angle = ± 60 ° ` Improved sensitivity ` Fast response times ` Low junction capacitance ` Plastic package with universal IR filter ` Option "L": long lead package optional available with suffix "L"; e.g.: BPV23FL
BPV23NF Typical Application
Infrared remote control and free air transmission systems in combination with IR emitter diodes (TSU., TSI., or TSH.Series). High sensitivity detector for high data rate transmission systems. The IR filter matches perfectly to the high speed infrared emitters in the 830 nm to 880 nm wavelength range.
