BPW82, BPW83, BPW83L

Table of contents:
Info of BPW82
Info of BPW83
Info of BPW83L

BPW82, BPW83, BPW83L Selling Leads, Datasheet

MFG:Vishay/Semiconductors Category:Sensors, Transducers Package Cooled:TFK539BPW82 D/C:08+

BPW82, BPW83, BPW83L Datasheet download

Five Points

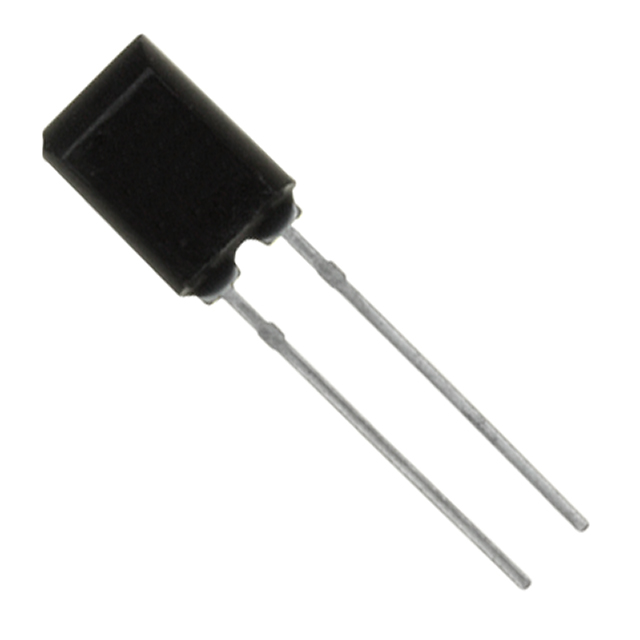

Part Number: BPW83

Category: Sensors, Transducers

MFG: Vishay/Semiconductors

Package Cooled: TFK539BPW82

D/C: 08+

Description: PHOTODIODE PIN FLAT SIDE VIEW

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

BPW82 General Description

Silicon PIN Photodiode, RoHS Compliant

BPW82 Maximum Ratings

</TAB

Parameter	Test Conditions	Symbol	Value	Unit
Reverse Voltage		V_R	60	V
Power Dissipation	T_amb 25	P_V	215	mW
Junction Temperature		T_j	100
Storage Temperature Range		T_stg	55...+100
Soldering Temperature	t 5 s	T_sd	260
Thermal Resistance Junction/Ambient		R_thJA	350	K/W

BPW82 Features

Large radiant sensitive area (A=7.5 mm² )
Wide angle of half sensitivity = ± 65 ^o
High radiant sensitivity
Fast response times
Small junction capacitance
Plastic case with IR filter
Suitable for near infrared radiation
Especially for GaAlAs emitters with _p=870nm

BPW82 Typical Application

High speed photo detector

BPW83 Parameters

Technical/Catalog Information	BPW83
Vendor	Vishay/Semiconductors
Category	Sensors, Transducers
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BPW83 BPW83 751 1022 ND 7511022ND 751-1022

BPW83 General Description

BPW83 is a high speed and high sensitive PIN photodiode in a flat side view plastic package. The epoxy package itself is an IR filter, spectrally matched to GaAs or GaAlAs IR emitters (_p800 nm).

The large active area combined with a flat case gives a high sensitivity at a wide viewing angle.

BPW83 Maximum Ratings

</TA

Parameter	Test Conditions	Symbol	Value	Unit
Reverse Voltage		V_R	60	V
Power Dissipation	T_amb 25	P_V	215	mW
Junction Temperature		T_j	100
Storage Temperature Range		T_stg	55...+100
Soldering Temperature	t 5 s	T_sd	260
Thermal Resistance Junction/Ambient		R_thJA	350	K/W

BPW83 Features

BPW83 Typical Application

High speed photo detector
