MFG:Fairchild Semiconductor Category:Integrated Circuits (ICs) Package Cooled:0417+ D/C:PGA
FCBGA196LF-ES, FCBS0550, FCBS0650 Datasheet download
Category: Integrated Circuits (ICs)
MFG: Fairchild Semiconductor
Package Cooled: 0417+
D/C: PGA
Description: IC SMART POWER MOD SPM27-BA
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FCB11N60
File Size: 596000 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FCBS0550
File Size: 255270 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FCBS0650
File Size: 263940 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
| Technical/Catalog Information | FCBS0550 |
| Vendor | Fairchild Semiconductor |
| Category | Integrated Circuits (ICs) |
| Applications | AC Motor Driver, 3 Phase |
| Number of Outputs | 1 |
| Voltage - Supply | 13.5 V ~ 16.5 V |
| Voltage - Load | 300 V ~ 400 V |
| Current - Output | 5A |
| Operating Temperature | -20°C ~ 100°C |
| Package / Case | SPM27BA |
| Packaging | Tube |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FCBS0550 FCBS0550 |
It is an advanced smart power module (SPM) that Fairchild has newly developed and designed to provide very compact and high performance ac motor drives mainly targeting low-power inverter-driven application like refrigerator. It combines opti- mized circuit protection and drive matched to low-loss MOS- FETs. System reliability is further enhanced by the integrated under-voltage lock-out and short-circuit protection. The high speed built-in HVIC provides opto-coupler-less single-supply MOSFET gate driving capability that further reduce the overall size of the inverter system design. Each phase current of inverter can be monitored separately due to the divided nega- tive dc terminals.
|
Symbol |
Parameter | Conditions |
Rating |
Units |
|
VPN |
Supply Voltage | Applied between P- NU,NV,NW |
400 |
V |
|
VPN(Surge) |
Supply Voltage (Surge) | Applied between P- NU,NV,NW |
450 |
V |
|
VCES |
Collector-emitter Voltage |
600 |
V | |
|
± IC |
Each IGBT Collector Current | TC = 25°C,Peak Sinusoidal Current |
50 |
A |
|
± IDP |
Each IGBT Collector Current (Peak) | TC = 25°C, Under 1ms Pulse Width |
100 |
A |
|
PC |
Collector Dissipation | TC = 25°C per One IGBT |
25 |
W |
|
TJ |
Operating Junction Temperature | (Note 1) |
-20~125 |
°C |

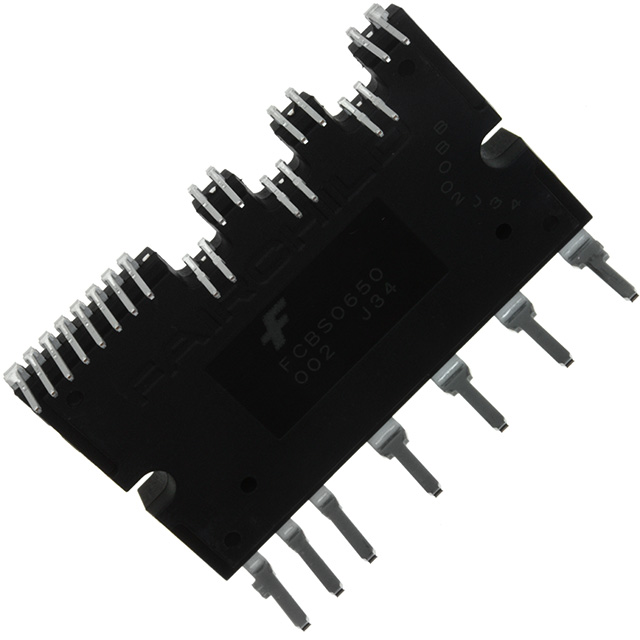

| Technical/Catalog Information | FCBS0650 |
| Vendor | Fairchild Semiconductor |
| Category | Integrated Circuits (ICs) |
| Applications | AC Motor Driver, 3 Phase |
| Number of Outputs | 1 |
| Voltage - Supply | 13.5 V ~ 16.5 V |
| Voltage - Load | 300 V ~ 400 V |
| Current - Output | 6A |
| Operating Temperature | -20°C ~ 100°C |
| Package / Case | SPM27BA |
| Packaging | Tube |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FCBS0650 FCBS0650 |
It is an advanced smart power module (SPM) that Fairchild has newly developed and designed to provide very compact and high performance ac motor drives mainly targeting low-power inverter-driven application like refrigerator. It combines opti- mized circuit protection and drive matched to low-loss MOS- FETs. System reliability is further enhanced by the integrated under-voltage lock-out and short-circuit protection. The high speed built-in HVIC provides opto-coupler-less single-supply MOSFET gate driving capability that further reduce the overall size of the inverter system design. Each phase current of inverter can be monitored separately due to the divided nega- tive dc terminals.
|
Symbol |
Parameter | Conditions |
Rating |
Units |
|
VPN |
Supply Voltage | Applied between P- NU,NV,NW |
400 |
V |
|
VPN(Surge) |
Supply Voltage (Surge) | Applied between P- NU,NV,NW |
450 |
V |
|
VCES |
Collector-emitter Voltage |
500 |
V | |
|
± IC |
Each IGBT Collector Current | TC = 25°C,Peak Sinusoidal Current |
6 |
A |
|
± IDP |
Each IGBT Collector Current (Peak) | TC = 25°C, Under 1ms Pulse Width |
8 |
A |
|
PC |
Collector Dissipation | TC = 25°C per One IGBT |
26.3 |
W |
|
TJ |
Operating Junction Temperature | (Note 1) |
-20~125 |
°C |
