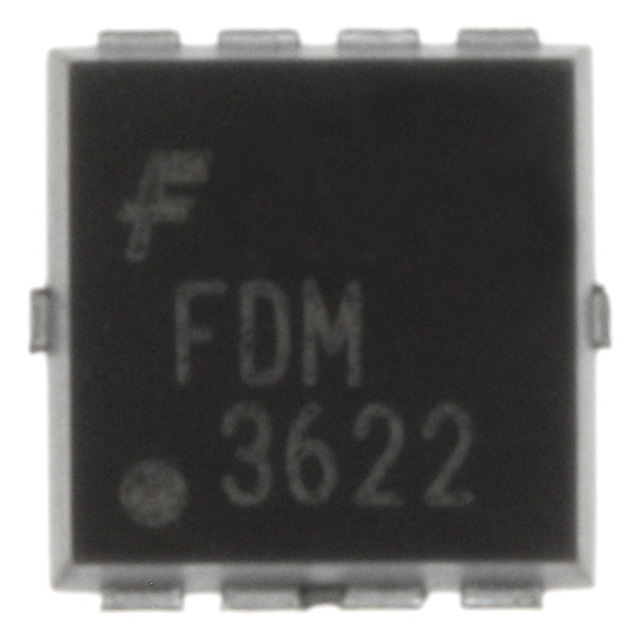

Part Number: FDM3622

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor (VA)

Package Cooled: QFN

D/C: 06+

Description: MOSFET N-CH 100V 4.4A POWER33

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FDM3622 Parameters

Technical/Catalog Information	FDM3622
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25° C	4.4A
Rds On (Max) @ Id, Vgs	60 mOhm @ 4.4A, 10V
Input Capacitance (Ciss) @ Vds	1090pF @ 25V
Power - Max	900mW
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	17nC @ 10V
Package / Case	Power33
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDM3622 FDM3622 FDM3622DKR ND FDM3622DKRND FDM3622DKR

FDM3622 General Description

This N-Channel MOSFET is produced using Fairchild Semiconductor's advanced PowerTrench process that has been especially tailored to minimize the on-state resistance and yet maintain low gate charge for superior switching performance.

FDM3622 Maximum Ratings

Symbol	Parameter	Ratings	Units
V_DSS	Drain to Source Voltage	100	V
V_GS	Gate to Source Voltage	± 20	V
I_D	Drain Current Continuous (T_C = 25 oC, V_GS = 10V, R_JA = 52/W)	4.4	A
	Continuous (T_C = 25 oC, V_GS= 6V, R_JA = 52/W)	3.8
	Continuous (T_C = 100oC, V_GS= 10V, R_JA = 52/W)	2.8	A
	Pulsed Figure	4	A
E_AS	Single Pulse Avalanche Energy (Note 2)	190	mJ
P_D	Power dissipation	2.4	W
P_D	Derate above 25	19	mW/
T_J, T_STG	Operating and Storage Temperature	-55 to 150

FDM3622 Features

r_DS(ON)= 44mΩ (Typ.), V_GS = 10V, I_D= 4.4A
Q_g(tot) = 13nC (Typ.), V_GS = 10V
Low Miller Charge
Low QRR
Body Diode
Optimized efficiency at high frequencies
UIS Capability (Single Pulse and Repetitive Pulse)

FDM3622 Typical Application

Distributed Power Architectures and VRMs
Primary Switch for 24V and 48V Systems
High Voltage Synchronous Rectifier
Formerly developmental type 82744
