FDMC4435BZ, FDMC6675BZ, FDMC6890NZ

Table of contents:
Info of FDMC4435BZ
Info of FDMC6675BZ
Info of FDMC6890NZ

FDMC4435BZ, FDMC6675BZ, FDMC6890NZ Selling Leads, Datasheet

MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:Power 33 (PQFN) D/C:2010+

FDMC4435BZ, FDMC6675BZ, FDMC6890NZ Datasheet download

Five Points

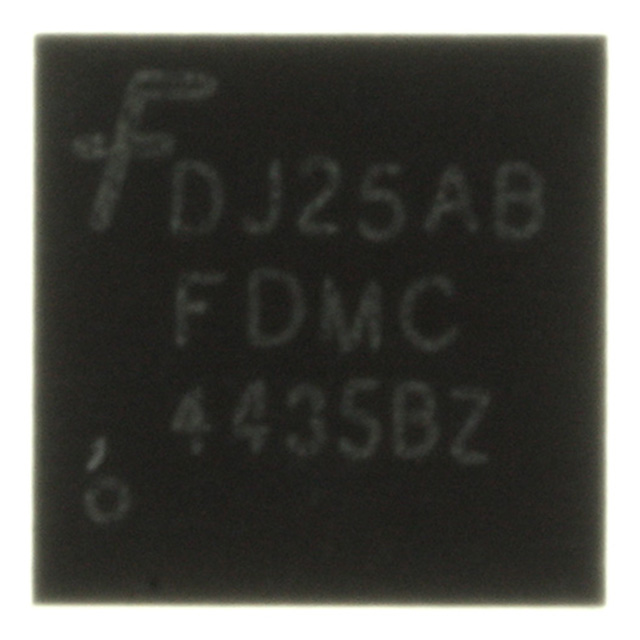

Part Number: FDMC4435BZ

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor

Package Cooled: Power 33 (PQFN)

D/C: 2010+

Description: MOSFET N-CH DUAL 20V 4A POWER33

Price Break

1
10
100
250

Unit Price

.80000
.60000
.45000
.33200

Extended Price

0.80
6.00
45.00
83.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FDMC4435BZ Parameters

Technical/Catalog Information	FDMC4435BZ
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	P-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	8.5A
Rds On (Max) @ Id, Vgs	20 mOhm @ 8.5A, 10V
Input Capacitance (Ciss) @ Vds	2045pF @ 15V
Power - Max	2.3W
Packaging	Cut Tape (CT)
Gate Charge (Qg) @ Vgs	46nC @ 10V
Package / Case	Power33
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMC4435BZ FDMC4435BZ FDMC4435BZCT ND FDMC4435BZCTND FDMC4435BZCT

FDMC6675BZ Parameters

Technical/Catalog Information	FDMC6675BZ
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	P-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	9.5A
Rds On (Max) @ Id, Vgs	14.4 mOhm @ 9.5A, 10V
Input Capacitance (Ciss) @ Vds	2865pF @ 15V
Power - Max	2.3W
Packaging	Cut Tape (CT)
Gate Charge (Qg) @ Vgs	65nC @ 10V
Package / Case	Power33
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMC6675BZ FDMC6675BZ FDMC6675BZCT ND FDMC6675BZCTND FDMC6675BZCT

FDMC6675BZ General Description

The FDMC6675BZ has been designed to minimize losses inload switch applications. Advancements in both silicon andpackage technologies have been combined to offer the lowestr_{DS(on)_{and ESD protection.}}

FDMC6675BZ Maximum Ratings

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing	Package Marking Convention**
FDMC6675BZ	Full Production	Green	$0.56	Power 33	8	TAPE REEL	MLP08O	Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: FDMC Line 3: 6675BZ

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FDMC6675BZ is available. Click here for more information .

FDMC6890NZ Parameters

Technical/Catalog Information	FDMC6890NZ
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	2 N-Channel (Dual)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25° C	4A
Rds On (Max) @ Id, Vgs	68 mOhm @ 4A, 4.5V
Input Capacitance (Ciss) @ Vds	270pF @ 10V
Power - Max	1.92W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	3.4nC @ 4.5V
Package / Case	Power33
FET Feature	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMC6890NZ FDMC6890NZ FDMC6890NZTR ND FDMC6890NZTRND FDMC6890NZTR
