MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:QFN8 D/C:07+
FDMF6700, FDMS2572, FDMS5672 Datasheet download
Category: Discrete Semiconductor Products
MFG: Fairchild Semiconductor
Package Cooled: QFN8
D/C: 07+
Description: MOSFET N-CH 60V 10.6A POWER56
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FDM 100-0045SP
File Size: 46537 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FDM 100-0045SP
File Size: 46537 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FDM 100-0045SP
File Size: 46537 KB
Manufacturer:
Download : Click here to Download
| Technical/Catalog Information | FDMF6700 |
| Vendor | Fairchild Semiconductor (VA) |
| Category | Integrated Circuits (ICs) |
| Type | Step-Down (Buck) |
| Number of Outputs | 1 |
| Voltage - Input | 12V |
| Voltage - Output | - |
| Current - Output | 25A |
| Power - Output | 7.7W |
| Package / Case | Power66 |
| Packaging | Cut Tape (CT) |
| Internal Switch(s) | Yes |
| Synchronous | Yes |
| Rds (On) | - |
| Operating Temperature | -55°C ~ 150°C |
| Frequency - Switching | 500kHz |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDMF6700 FDMF6700 FDMF6700CT ND FDMF6700CTND FDMF6700CT |

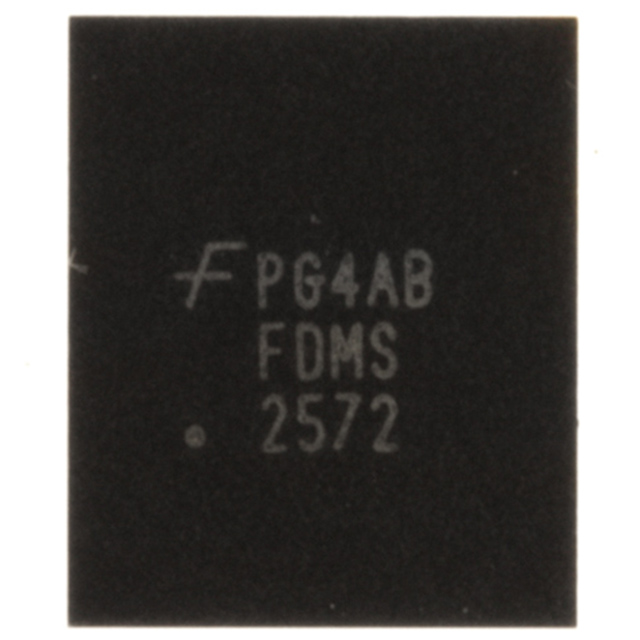

| Technical/Catalog Information | FDMS2572 |
| Vendor | Fairchild Semiconductor |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 150V |
| Current - Continuous Drain (Id) @ 25° C | 4.5A |
| Rds On (Max) @ Id, Vgs | 47 mOhm @ 4.5A, 10V |
| Input Capacitance (Ciss) @ Vds | 2610pF @ 75V |
| Power - Max | 2.5W |
| Packaging | Tape & Reel (TR) |
| Gate Charge (Qg) @ Vgs | 43nC @ 10V |
| Package / Case | Power56 |
| FET Feature | Logic Level Gate |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDMS2572 FDMS2572 FDMS2572TR ND FDMS2572TRND FDMS2572TR |
| Technical/Catalog Information | FDMS5672 |
| Vendor | Fairchild Semiconductor |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25° C | 10.6A |
| Rds On (Max) @ Id, Vgs | 11.5 mOhm @ 10.6A, 10V |
| Input Capacitance (Ciss) @ Vds | 2800pF @ 30V |
| Power - Max | 2.5W |
| Packaging | Tape & Reel (TR) |
| Gate Charge (Qg) @ Vgs | 45nC @ 10V |
| Package / Case | Power56 |
| FET Feature | Logic Level Gate |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDMS5672 FDMS5672 FDMS5672TR ND FDMS5672TRND FDMS5672TR |
